Metcal, Two Port Solder System, 230Vac

Metcal, Two Port Solder System, 230Vac PRODUCT: METMX-500S-21
Metcal, Two Port Solder System, 230Vac
Request a quote
Unit: Each
Arriving Soon: 0
Available Now: 0
Availablity: Delivery Usually 5-7 Days - Contact Us For Updated Pricing and Availablity
Metcal, Two Port Solder System, 230Vac.

Like the MFR-1100 Series, the MFR-2200 power supply offers the same choice of multiple
hand-pieces but with two ports. Flexibility can be increased by locking both
systems together. The MFR-2220 includes a Soldering tip hand-piece.

Features and Benefits:
* SmartHeat® Technology provides exceptional power for high thermal demand applications.
* Single or Dual simultaneous outputs allow for single or dual hand-piece use.
* Four hand-pieces available for increased application solutions for soldering and rework on
one system.
* Each hand-piece has a comprehensive range of cartridges or tips for maximum flexibility.
* Hand-pieces are ergonomic for operator safety and comfort.

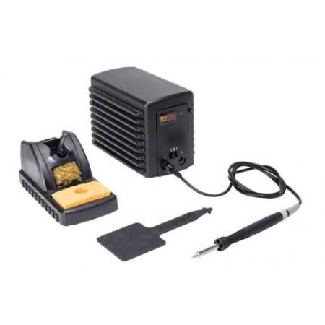

Product Comprises of:
MFR-H2-ST Hand-piece, Soldering Tip
MFR-PS2200 Power Supply, Dual Simultaneous Output
WS1 Auto Sleep Work stand

NOTE: No tip/cartridge included

Tips / Cartridges Series compatible with this system:
SxV Soldering Tips
CxV Blade Tips

Technical Information
Input Line Voltage / Frequency: 100- 240 VAC , 50/60 Hz grounded circuit

Power Consumption: 130 Watts maximum

Output Power Maximum: 60 Watts max. at 22°C per output (two outputs)

Idle Temperature Stability: ± 1.1°C (2°F)

Ambient Operating Temperature: 10- 40°C (50°F - 104°F)

Maximum Enclosure Temperature: 55°C (131°F)

Power Cord 3-Wire: 183cm (18/3") SJT (S = 600 Volt Service Cord, J = Junior Service - 300 Volt, T = Thermoplastic)

Hand-piece Cable Length: L=122cm (48"), burn resistant, ESD safe

Hand-piece Connector: 8-pin circular DIN

Tip-to-Ground Potential: < 2mV

Tip-to-Ground Resistance: < 2 ohms

Certification / Marking: cTUVus, CE

Power Supply Dimensions w x d x h: 170mm x 200mm x 152.5mm (7" x 8" x 6")

Work stand Dimensions w x d x h: 100 mm x 200 mm x 100 mm (4" x 8" x 4")

Surface Resistivity 105-109 Ohms
