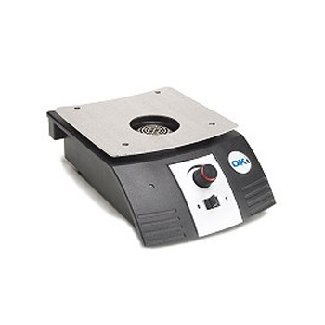

Metcal, PCT-100-21, Pre - Heater

PCT-100-21 230 VAC

* Heater Rating 450 W
* Pollution Degree Category II
* Storage Temperature -10°C-60°C (14°F-140°F)
* Environmental Temperature 0°C-40°C (32°F-104°F)
* Air Flow 10.2 cfm
* Control Temperature Variable Up to 300°C (572°F)
* Surface Resistivity ESD 106Ù - 1011Ù
* Dimensions 205mm (L) x 155mm (W) x 65mm (H)
8.07" (L) x 6.10" (W) x 2.56" (H)
* Weight 1.6 kg
* Certificate/Approvals cTUVus, CE

Key Features & Benefits
* Accelerates and enhances the lead-free SMT & through-hole rework process
*Temperature ramps up quickly, maximizing productivity
* Adjustable knob controls the required temperature to below 300°C
* Controlled cool-down eliminates thermal shock to PCB And components
* Thermocouple feedback temperature control regulates output temperature
* System safety feature automatically shuts off heating when fan is stopped
* ESD safe

Extras

MET-PCTAR Arm Rest

MET-PCT100 with Integrated Board Holder
(Specifications maximum PCB size: 12.0" (304.8mm) wide and minimum PCB size: 2.5" (63.5mm) wide)

The OKi MET-HCT900 Hand
Held Convection Tool is also ideal for
use with the pre-heater.
