PRESSMASTER CRIMP TOOL

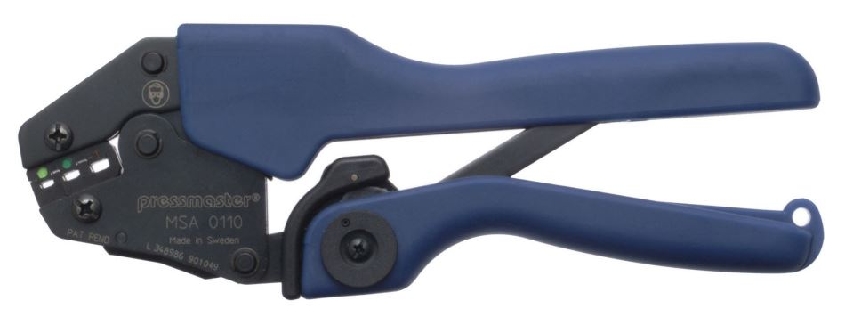

The Pressmaster MSA-0110 is a highly engineered ratchet crimping tool for making consistent and predictable crimp connections on pre-insulated terminals. It can be used for wire sizes between 26 and 16 AWG and accommodates transparent, green, and red color-coded terminal. The tool has ergonomic handles for easy two-handed use, a ratchet mechanism to give a full crimp cycle, and a safety release mechanism. Factory-adjusted using an eccentric cam, the MSA-0110 ensures peak performance over a minimum of 50,000 cycles.

Key Features:
*Ergonomic Design: Two-handed handles for comfortable operation to minimize user fatigue.
*Ratchet Mechanism: Provisions for a complete crimp cycle prior to release, ensuring uniform crimps.
*Safety Release: Provides for release of the tool mid-cycle, if required, to avoid connector or wire damage.
*Durability: Designed for a minimum of 50,000 crimp cycles to provide long-term reliability.
*Factory Calibration: Fitted with a accurate eccentric cam adjustment for reliable performance.
*Inspection Capability: Dies stamp terminal during crimping, allowing post-crimp inspection for quality control.

Specifications:
*Manufacturer: Pressmaster
*Part Number: MSA-0110 (4300-2205)
*Country of Origin: Sweden
*Length: 212 mm / 8.35"
*Height: 72 mm / 2.83"
*Weight: 470 g / 1.04 lbs
*Connector Type: Pre-insulated terminals (Transparent / Green / Red)
*Wire Size Range: 26-16 AWG
*Crimp Profile: Oval-Crimp symmetric
*Lifespan: Minimum of 50,000 cycles

Applications:
The MSA-0110 crimp tool is suited for:
*Electrical panel assembly and servicing
*Automotive wiring harness assembly
*Industrial equipment wiring
*Field service and repair work involving trustworthy crimping of pre-insulated terminals
