Pressmaster Precision die - 1.69/3.25 mm hex (RG179 etc) (4300-1070H)

PCC 5310/09 WB

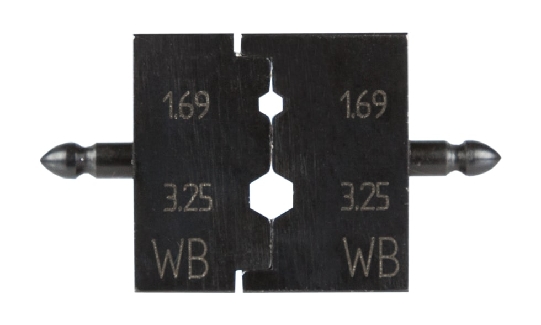

PCC-5310 Die set with nest 1.69 mm, 3.25 mm/.067'', .128'', HEX-Crimp. This is one of the interchangeable crimp die sets for the PCC-5310 frame. The user can cover several coaxial connectors in just one tool frame.

*High strength, through hardened alloy steel construction
*Full cycle crimp mechanism to ensure consistent, reliable crimp
*Ratchet release mechanism to clear miscrimps and obstructions
*Precision eccentric adjustment for consistent performance and ability to calibrate
*Each tool has a unique serial number for traceability
*The part number is a reference to the die set without frame.

TECHNICAL DATA
Length: 38 mm/1.5"
Width: 21 mm/0.83"
Height: 8 mm/0.31"
Weight: 30 gr/0.07 lb
Crimp dimensions mm/mm2:
1.69 mm HEX/3.25 mm HEX
Crimp dimensions inch/AWG:
0.067''/0.128
Connector: Coaxial connector
Description: For type BT connectors on RG 179.
Life span, cycles: 50,000
Cables: RG174A/U, RG179B/U, RG187A/U, RG188A/U, RG316/U
