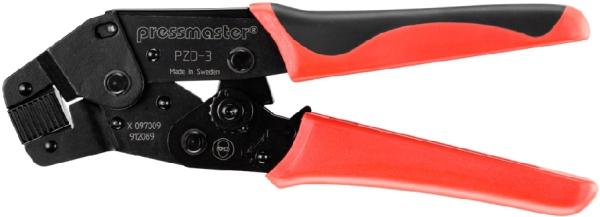

The Pressmaster PZD-3 is a precision-made crimping tool specifically intended for crimping wire end sleeves (ferrules) to DIN 46228 standards. It has a capacity of wire sizes from 0.5 to 6 mm² (AWG 22-10) and has a self-adjusting feature, providing uniform and dependable square crimps on both insulated and uninsulated ferrules. Its ergonomic shape and rugged construction make it ideal for professional applications in electrical and industrial uses.
Key Features:
*Self-Adjusting Mechanism: Continuously adjusts between 0.5 to 6 mm² wire sizes (AWG 22-10), obviating the requirement of manual setting.
*Square Crimp Profile: Optimal contact for secure, trouble-free electrical connection.
*Front-Feeding Design: Promotes easy installation of wire end sleeves, providing ease of operation.
*Ergonomic Design: Equipped with consideration for use by both left-hand and right-hand individuals to combat hand strain while in service long periods.
*Strong Construction: Manufactured of long-lasting strength with through-hardening alloy steel.
*Full-Cycle Crimp Mechanism: Provides repeatable and complete crimps consistently.
*Ratchet Release Mechanism: Enables clearing of miscrimps and blockages safely.
*Precision Eccentric Adjustment: Offers repeatable performance and adjustment to calibrate the tool as required.
*Traceability: Unique serial number on each tool for quality control and traceability.
Specification:
*Manufacturer: Pressmaster
*Part Number: PZD3 (4300-3047)
*Crimping Range: 0.5-6 mm² (AWG 22-10)
*Crimp Profile: Square
*Feed Type: Front-fed
*Dimensions:
Length: 198 mm
Width: 18 mm
Height: 59 mm
Weight: 376 grams
*Cycle Life: Rated for 50,000 cycles
*Compatible Connector Types: Insulated and uninsulated wire end sleeves (ferrules)
Applications:
*Electrical Installations: Best for making safe connections in residential, commercial, and industrial electrical systems.
*Control Panel Assembly: Provides durable crimps for control panels and switchboards.
*Industrial Wiring: Good for heavy-duty wiring where strong and reliable connections are needed.
*Maintenance and Repair: Ideal for maintenance work where repeatable and high-quality crimps are required.
*Field Service: Portable design allows it to be handy for on-site electrical work.
