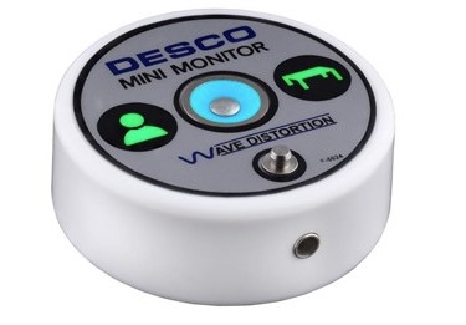

Single Workstation Continuous Monitor
Continuously monitors the path-to-ground integrity of one operator and one ESD worksurface
NEW Illuminated Enclosure
Makes the status of the operator and worksurface highly visible to the operator and supervisor
IMPROVED Continuous Visual and Audible Alarms
Illuminates green to indicate proper grounding; illuminates red and sounds audible alarm when intermittent or failed connection occurs; illuminates blue to indicate standby mode
NEW Park Delay Timer and ParkSnap
Indicates the 8 second delay to disconnect and park the operator wrist cord without creating a false alarm
NEW Mat Monitor Switch
Disables the worksurface monitor circuit when used in areas where there is no ESD worksurface
NEW Audible Alarm Adjustment
Sets the audible alarm volume from loud to louder
Wave Distortion Technology
Provides stable continuous monitoring (versus pulsed or intermittent) of the wrist strap’s path-to-ground² and the presence of its 1 megohm safety resistor
Threaded Worksurface Grounding and Mounting
Grounds and monitors the worksurface with no additional wire
Single-Wire Impedance Design
Meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-0
1.2 Volt Operator Test Voltage
Reduces the risk of electrical overstress (EOS) for the handling of sensitive components
<50 Millisecond Alarm Response Time
Identifies failures and intermittencies that inferior technologies miss
Desco 19344 Ring Magnets
Mounts the monitor in areas without a worksurface
Calibration Verification
Use the Desco 98221 Wave Distortion Monitor Verification Tester to check the test limits of Wave Distortion Monitors without removing them from their workstations
NIST Calibrated
Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of Desco products, see Calibration.
100-240VAC Safety Certified Power Adapter with IEC C14 Style Inlet
Connects to a power cord with an IEC C13 connector. See items 50545 and 50546.
Made in the United States of America
