The Desco Analogue Surface Resistance Test Kit is a portable battery-powered instrument designed to measure resistance point-to-point (RTT) and surface to ground (RTG). The meter is equipped with an automatic test voltage selector. The test voltage will switch from 10V to 100V should the measured resistance
exceed 1 x 105 ohms.

Analog Compliance Verification Surface Resistance Checker - Used for determining if a surface is dissipative, conductive or insulative
Automatic Test Range Voltage Selection Per Compliance Verification ESD TR53 - Starts tests at 10 volts and automatically switches to 100 volts if the measurement is over 10E5 ohms
Portable Operation with 9 Volt Battery - No charging or sourcing of special batteries needed
Five Pounds Electrodes and Leads - Use with the meter to measure resistance point-to-point (RTT) and resistance to ground (RTG)
LED Illuminates When Battery Power is Low - Prevents operator from making bad measurements
NIST Calibrated - Calibrated with accepted procedures and standards traceable to the National Institute of Standards Technology
Made in the United States of America

Resistance Ranges: 1 x 103 to 1 x 1013 ohms @ 10 Volts, complies with ANSI/ ESD S4.1
1 x 106 to 1 x 1013 ohms @ 100 Volts, complies with ANSI/ ESD S4.1
Accuracy: ±1/2 decade
Power Supply: 9V alkaline battery
Operating Temperature: 41ºF to 85ºF (5ºC to 30ºC)
Environmental Requirements: Indoor use only at altitudes less than 6500 ft. (2 km)
Maximum relative humidity of 80% up to 85°F (30°C)
Meter Dimensions: (110 mm x 70 mm x 50 mm (4.5" x 2.8" x 2.1")
Meter Weight: 0.2 kg (0.5 lbs)
Carrying Case Kit Dimensions: (240 mm x 300 mm x 90mm) (9.5" x 12.0" x 3.5")
Carrying Case Kit Weight: 5.4 kg (12.0 lbs)
External Electrode: 5 lbs (±2 oz), 2.5" in diameter complies with ANSI/ESD S4.1

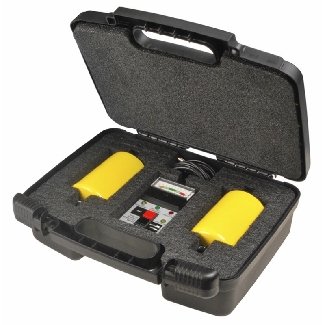

1 x Analog Surface Resistance Meter
1 x 9V Alkaline Battery
2 x Shielded Test Leads
2 x Five Pound Electrodes
1 x Plastic Carrying Case
1 x Certificate of Calibration
