Pressmaster Wire Crimp Tool PRODUCT: PREKSA0760
Pressmaster Wire Crimp Tool
Request a quote
Unit: Each
Availability: Please Confirm Lead Time
KSA 0760

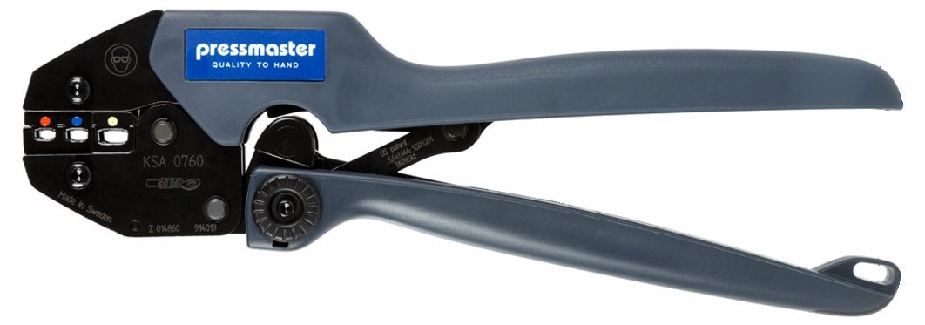

KSA-0760 is a crimping tool for insulated connectors, 0.75 - 6.0 mm²/AWG 22-10 (red, blue, yellow), Oval-Crimp symmetric. Short and long handle available.

High strength, through hardened alloy steel construction
Unique mechanism significantly reduces hand force requirement over competing crimping tools
Versatile and easy to customize for right hand or left hand users.
Non-slip pad holds tool in place when leveraging on a work surface
Full cycle crimp mechanism to ensure consistent, reliable crimp
Ratchet release mechanism to clear miscrimps and obstructions
Precision eccentric adjustment for consistent performance and ability to calibrate
Hole in handle allows attachment of safety strap
Each tool has a unique serial number for traceability

Length: 256 mm/10.08"
Width: 22 mm/0.87"
Height: 80 mm/3.15"
Weight: 559 gr/1.23 lb
Wire size: 0.75-6 mm2 / AWG 22-AWG 10
Crimp dimensions mm/mm2:
0,75 - 1,5 mm2 (red)/1,5 - 2,5 mm2 (blue)/4 - 6 mm2 (yellow)
Crimp dimensions inch/AWG:
AWG 22 - AWG 16/AWG 16 - AWG 14/AWG 12 - AWG 10
Connector: Insulated connectors
Description: For pre insulated red, blue and yellow connectors.
Life span, cycles: 50,000
