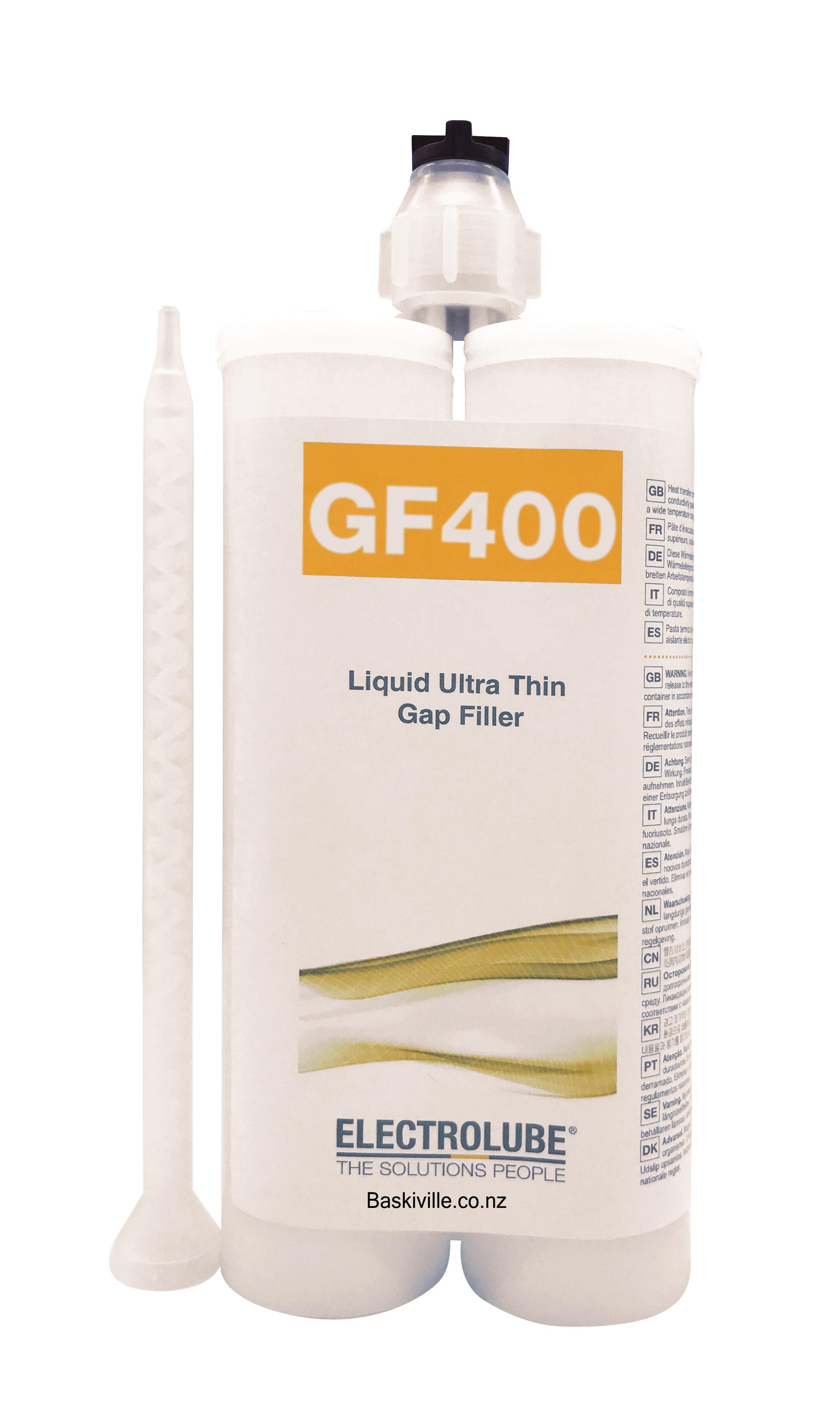

GF400 is a two part, liquid silicone based gap filler, which provides excellent thermal performance (4.0 W/m.K) and can be cured at room temperature or accelerated with heat. After curing GF400 forms a low modulus elastomer preventing the 'pump-out phenomenon'.
Soft and compliant for low stress applications
Low viscosity; easy to dispense
High thermal conductivity
Low modulus elastomer, prevents 'pump-out'
RoHS Compliant
Size: 400mls
Base Material: Silicone
Colour Part A: Pink
Colour Part B: White
Part A Viscosity (cps 23°C): 170 000
Part B Viscosity (cps 23°C): 170 000
Mix Ratio: 1:1
Gel Time (25°C): 60 minutes
Cure Time (25 °C): 12 hours
Cure Time (100 °C): 20 minutes
Cured Density (g/ml): 3.2
Thermal Conductivity (W/m.K): 4.0
Colour: Pale Pink
Shore Hardness @ 25ºC: 55 Shore 00
Temperature Range (°C): -50 to 200
Flame Retardancy: Meets UL94 V-0
