Europlacer XPii-II SMT Pick and Place Machine PRODUCT: EUXPii-2

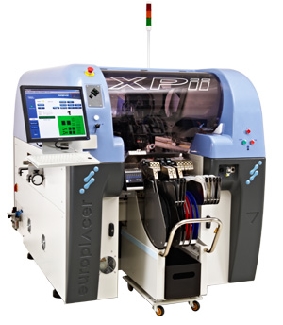

Europlacer XPii-II SMT Pick and Place Machine
Request a quote
Unit: Each
Availability: Please Confirm Lead Time
modular compact footprint
huge component range
linear motors
hi-resolution digital cameras
'smart' nozzles
true 'on the fly' vision

XPii is a refreshing new approach to modular pick and place. Incorporating technology from Europlacer's innovative award winning iineo platform, XPii benefits from low maintenance linear motors, high resolution digital cameras and advanced on-head optical component sensing. With these advanced features you can benefit from all the capability of iineo in a compact space and the modularity enables you to build your line to meet growing demands.

XPii uses Europlacer proven core features, such as turret head, intelligent feeders and powerful software without compromise. It is equipped with a choice of turret heads and incorporates optical sensors that can detect, on the fly, the presence of components as small as 01005 and as large as 50 x 50 mm from picking to placement. XPii will accommodate components supplied on tape, strip tape, stick and matrix tray.

The XPii -II features two rotary heads on X/Y gantries with 8 or 12 pick ups and 'Smart' nozzles.
Heads: 2rotary heads on X/Y gantries
with 8 or 12 pick ups & 2 x 40 position ‘smart’ nozzle banks
or (1 x 40 + 1 x 20 + 1 special) in option
Rate: 23 800 cph (IPC: 17 400 cph)
26 800 cph (IPC: 20 000 cph) with Tornado head
Components:

01005 to 50x50mm
(70 x70mm and 100mm connectors with fixed camera option)
Lead Pitch:

0.3mm (QFP), 0.4mm (µBGA)
0.15mm (QFP), 0.2mm (µBGA) with fixed camera option
Lead size: 0.15mm (QFP), 0.2mm (µBGA)
0.07mm (QFP), 0.1mm (µBGA) with fixed camera option
Accuracy: standard 35µm (QFP) to 60µm (Chip)
Feeders: 92 * 8mm
PCB Length:

60 to 500mm
PCB Width: 60mm to 460mm (60 to 405mm with tray sequencer)


Options:

Fixed upward vision camera
Internal matrix tray holder
Electrical test
Conveyor automatic width adjustment
Rear operating station
Right to left conveyor
Special nozzle magazine
