Pick & Place Machines

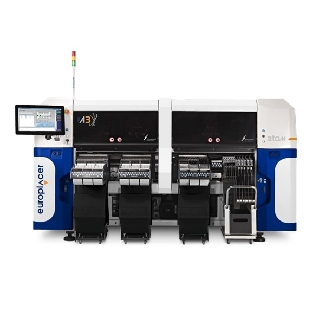

The Europlacer ii-A3 is a high-performance SMT pick-and-place machine for high-mix, high-volume production facilities. Featuring two high-speed Pulsar pipette heads with a Tornado turret head, the ii-A3 provides excellent flexibility and throughput. It features a wide component range, smart conveyor operation, and enhanced placement accuracy, and is perfect for complex PCB manufacturing.

Key Features:
*Triple Heads of Placement: Two Pulsar head and one Tornado turret head are mounted together to provide a blend of speed and accuracy.
*High Speed of Placement: Placing a maximum of 65,000 components an hour (CPH), which can be deployed in high-volume production lines.
*Wide Support of Components: Places components of sizes ranging from 01005 up to 99mm x 99mm, with a component height up to 34mm and a weight of up to 300g.
*Intelligent Conveyor System: Includes a patented, software-driven conveyor without mechanical board stops for accurate and quick PCB positioning.
*Large Feeder Capacity: Has up to 264 x 8mm feeder positions and is able to manage tape widths from 4mm up to 104mm.
*Tray Support: Holds up to 5 internal JEDEC trays for component diversity.
*Smart Nozzle Technology: Any type of component can be processed by any nozzle, allowing real line balancing and flexibility.
*Optional Upward Camera: Helps in mounting fine-pitch or large devices with greater accuracy.
*Component Testing: Built-in testing with standards of calibration like UKAS, NIST, and PTB.
*Industry 4.0 Integration: IPC CFX compatible for traceability and smart factory communication.

Specifications:
*Placement Heads: 2 Pulsar pipette heads + 1 Tornado turret head
*Max Placement Speed: Up to 65,000 components per hour (CPH)
*Component Size Range: From 01005 to 99mm x 99mm
*Max Component Height: 34mm
*Max Component Weight: 300g
*Feeder Capacity: Up to 264 x 8mm positions
*Tray Capacity: Up to 5 internal JEDEC trays
*PCB Size Handling: Up to 2059mm x 715mm
*Placement Accuracy: 22 µm (QFPs) to 46 µm (chips) at 3 sigma

Applications:
The Europlacer ii-A3 is suited for:
*High-mix, high-volume PCB production
*Rapid-changeover production lines
*Precise placement of intricate and large components
*Electronics, automotive, aerospace, industrial, medical, and defense industries
