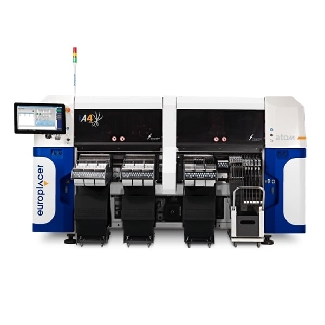

The Europlacer ii-A4 is a flexible, high-speed surface-mount technology (SMT) pick-and-place machine suitable for use in high-volume manufacturing environments. With Europlacer's heritage of flexibility, the ii-A4 pairs cutting-edge technology with high-speed performance to serve the needs of contemporary electronics manufacturing.

Key Features:
*High-Speed Placement: Attains up to 104,000 components per hour (CPH) placement speed, maximizing throughput in mass-scale production.
*Quad Pulsar Pipette Heads: Four high-end Pulsar pipette heads with 8 placement smart nozzles each, for the simultaneous multi-component placement.
*Intelligent Conveyor System: Patented software-controlled conveyor without mechanical board stops that provides accurate PCB positioning and most efficient head travel paths.
*Component Range: Placing components from 01005 up to 13mm x 13mm with a maximum height of 7mm.
*Feeder Capacity: Has feeder capacity to hold 264 x 8mm feeder positions with tape widths from 4mm up to 104mm.
*Placement Accuracy: Has placement accuracy from 22µm for QFP to 50µm for chip at 3 sigma.
*Industry 4.0 Ready: Has support for IPC CFX for improved connectivity, traceability, and integration into smart factory environments.

Specifications:
*Placement Heads: 4 Pulsar pipette heads with 8 smart nozzles per head.
*Max Placement Speed: Max placement speed of up to 104,000 components per hour (CPH).
*Component Size Range: 01005 to 13mm x 13mm.
*Max Component Height: 7mm.
*Feeder Capacity: 264 x 8mm feeder positions; can accommodate tapes from 4mm to 104mm in width.
*PCB Size Handling: Up to 825mm x 715mm.
*Placement Accuracy: 22µm (QFPs) to 50µm (chips) at 3 sigma.

Applications:
The Europlacer ii-A4 is well-suited for:
*High-Volume Production: Effectively manages large-volume manufacturing runs with high throughput demands.
*Complex PCB Assemblies: Able to place a broad variety of components, including large and fine-pitch devices.
*Electronics Manufacturing: Used in consumer electronics, automotive, industrial control, aerospace, medical, and defense industries.
