Europlacer Atom 3 Pick and Place SMT Machine PRODUCT: E_Atom3
Europlacer Atom 3 Pick and Place SMT Machine
Request a quote
Unit: Each
Availability: Please Confirm Lead Time

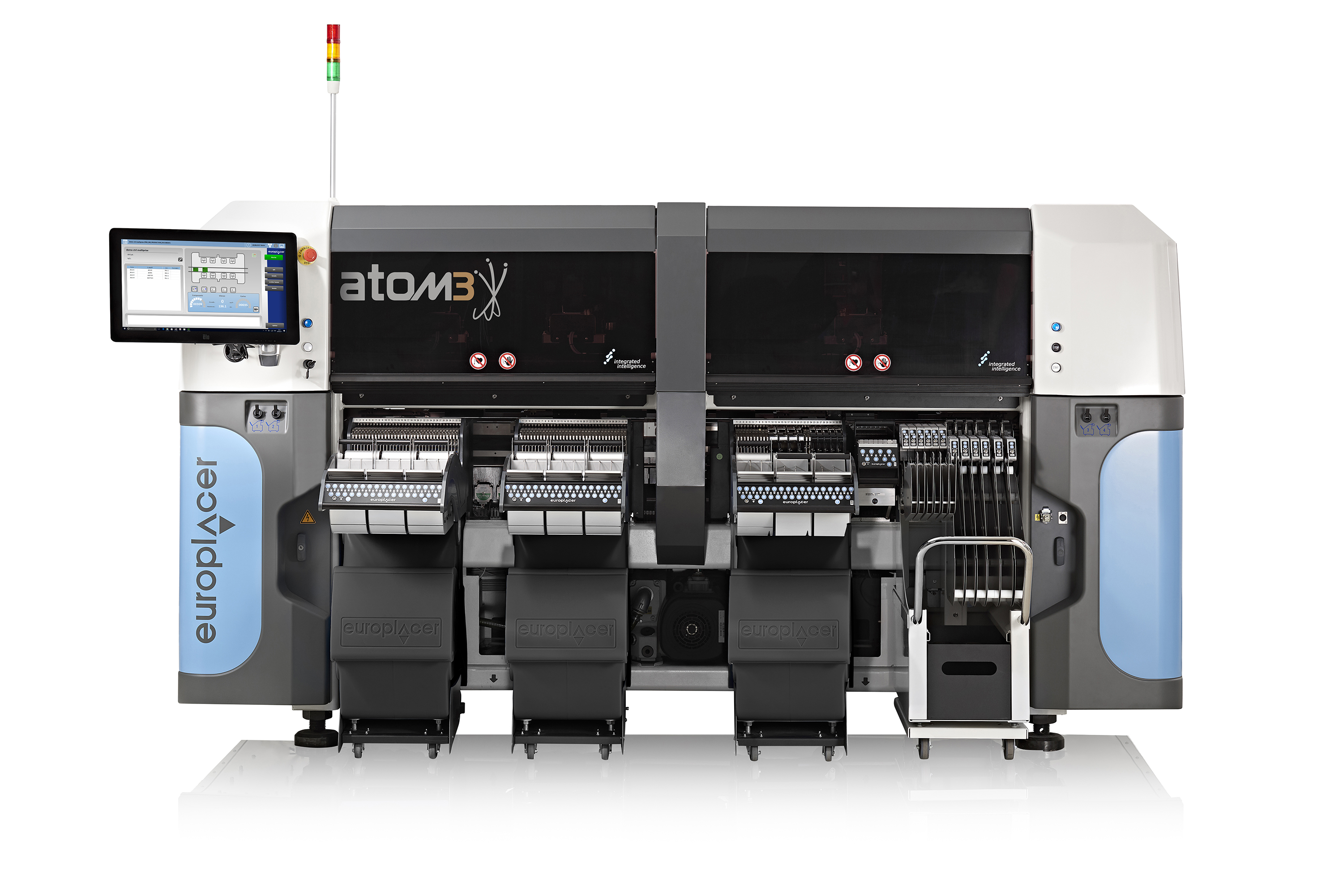

Atom 3
Flexible high speed placement

Atom 3 deploys a pair of the new high-speed Pulsar heads, each on an independent axis, and adds proven Tornado turret technology that makes iineo+ the industry’s most flexible SMT placement machine.
That Tornado head is on its own axis and is specified with eight nozzles.
With those three heads working together, and placement optimised by our latest software, Atom 3 achieves rates up to 65,000 components per hour for devices from 01005 profile to 99mm².
It is Europlacer’s most flexible machine ever.
264 x 8mm feeders
up to 5 internal Jedec trays
01005 to 99 x 99 mm components
35 µm (QFPs), 50 µm (chips) @ 3 sigma
PCB size up to 2059mm x 715mm
Component weight & height – 300g & 34mm
Component testing capability – with independently verifiable calibration (UKAS / NIST / PTB… etc.)
Dispensing – Archimedes or air/time for glue or solder paste
Every nozzle position can place all and any component types, for real line balancing and no limitations
Odd form & smart nozzle banks
65,000CPH Max
https://www.europlacer.com/flexible-high-speed-placement-atom3/
https://vimeo.com/388497857
Atom 3 Fast pick and place
