Hakko FA430 Fume Extraction PRODUCT: HKFA430-15
Hakko FA430 Fume Extraction
Request a quote
Unit: Each
Arriving Soon: 0
Available Now: 0
Availablity: Delivery Usually 5-7 Days - Contact Us For Updated Pricing and Availablity

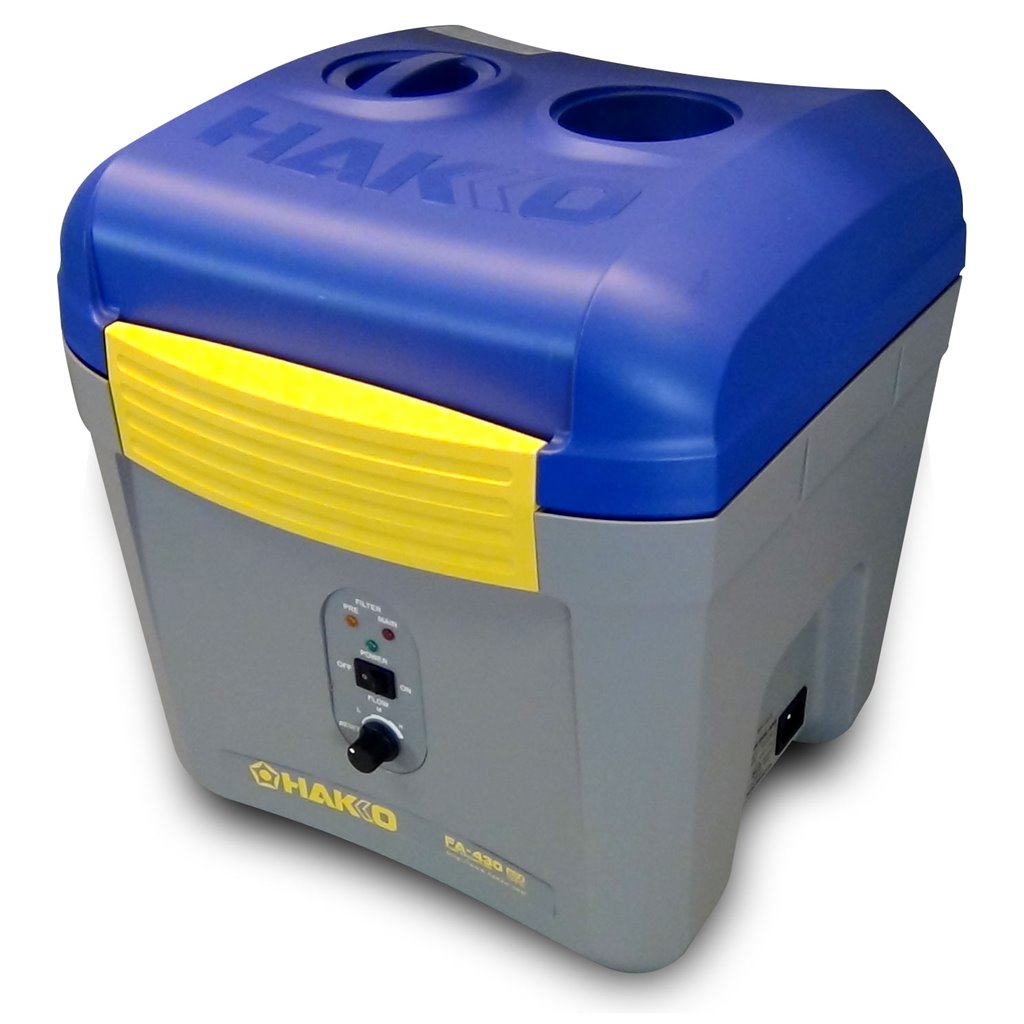

Hakko FA430 Fume Extraction System 240V

The Hakko FA-430 is a volume fume extractor unit with pre-HEPA,
and maximum 2 ports/2 stations, no arms, 120W.

Hakko FA-430 Features:

Designed for use at soldering stations where it extracts contaminated air directly from the
source and transfers it to the unit by flexible or rigid ducts
Powerful suction, quiet operation
Three airflow adjustment modes: High, medium, lo Two filters inside the unit remove
contaminants from the air, then return the purified air to the area where the FA-430-16 is
located Pre-filter made from treated polyester material that removes coarse particles like
dust and subsequently extends the life of the main HEPA filter
HEPA filter made from fiberglass paper medium and provides the greatest amount of
surface area within the volume of the filter case
Standard filters contain an activated carbon element with absorption ratings of 80-85% and
are also designed to extend the life of the main HEPA filter
Filter efficiencies are greater than 98% at 0.3 microns
Special filter replacement notification function detects the fan speed and notifies the
operator of the appropriate time to replace the filters via indicator lights on the front panel

Power consumption: 120W
Maximum air flow:
- One port: 145 CFM (4.1 cu.m./min.)
- Two ports: 167 CFM (4.7 cu.m./min.)
Noise level: 44-53 dB @1m
Dimensions: 13.0" W x 14.4" H x 13.5" D (330 x 366 x 343 mm)
Weight (with filters): Approximately 16.5 lbs. (7.5 kgs)

Hoses sold separately HKC1571 for the rectangular nozzle and HKC1572 for the
Round Nozzle

NOTE: Not for use with flammable vapour's
