Static Generation

Static pinners are employed in many applications ranging from trim charging, edge pinning, and air-exclusion to In-Mould Labelling (IML).
Operating at up to 30 kV with power from a Fraser IONFIX Compact Generator, or similar, 7090 Static Pinner enable efficient electrostatic charging and pinning of small areas and objects.

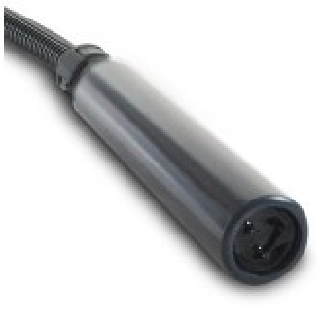

7090 , has a compact tubular design for pin-point charging of the smallest areas

All parts completely encapsulated for reliability and safety
HT cable is protected by a nylon conduit
Shockless, resistively coupled tungsten emitters for long life
Used with IONFIX 30 kV Generators, the operator has full control with operational feedback
7090 Static Pinners is used in a broad variety of electrostatic adhesion applications, including interleaving, pinning, labelling, IML, wrapping, bagmaking and many others.

Construction

All materials used meet UL94 V-0 flammability ratings. 7090 - 3 tungsten emitters.

Dimensions

7090: Diameter 20 mm.
Length: 100 mm (body), 123.5 mm (including connector).
.

Weight

7090: 110 g
7095-4: 100 g, 7095-8: 120 g, 7095-12: 140 g
Cable

2 m of HV cable. Longer lengths can be specified at time of order. Cable terminates in HV connector. Protective nylon conduit on cable. Minimum bend diameter 100 mm.

Safety

100 MOhm resistance for safe operation.

Environmental

Clean, dry and oil-free location. Temperature 60 °C max.

Generator

Use with Fraser 30 kV generators. State generator model at time of order.

Certification

CE.

7090_TDS
