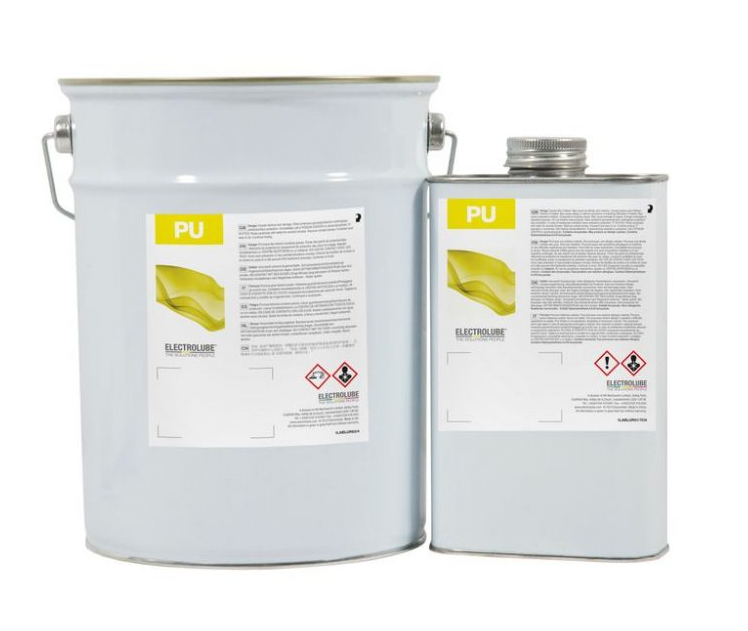

UR5041 is a two-part black encapsulation and potting compound formulated to perform to the highest levels.
UR5041 is a two-part, ultra high performance resin system which features excellent resistance to sea water and low water absorption.
*Excellent resistance to sea water; ideal for marine environments
*Good low temperature performance; suitable for use down to -60°C
*High toughness and tear resistance; offers good physical protection
*Excellent oxidation resistance; high performance in a range of challenging environments
Base Material: Polyurethane
Density Part A: Resin (g/ml) 1.17
Density Part B: Hardener (g/ml) 1.24
Part A Viscosity: (mPa s @ 23ºC) 9300
Part B Viscosity: (mPa s @ 23ºC) 55
Mixed System Viscosity (mPa s @ 23ºC) 2500
Mix Ratio (Weight): 3.64:1
Mix Ratio (Volume): 3.85:1
Usable Life (20°C): 20 mins
Gel Time (23°C): 60 mins
Cure Time (23 °C): 24 hours
Cure Time (60 °C): 4 hours
Colour Part A - Resin: Black
Colour Part B - Hardener: Amber
Storage Conditions: Dry Conditions: Above 15ºC, Below 35ºC
Shelf Life: 12 Months
Exotherm: < 50ºC
(Measured on 100ml sample in a cylinder of diameter 49.4mm @ 23ºC)< 50ºC
Shrinkage: < 0.5%
