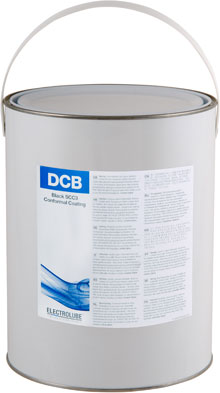

Electrolube DCB Silicone Conformal Coat,Black,1L PRODUCT: ELDCB01L
Electrolube DCB Silicone Conformal Coat,Black,1L
$205.00 (EX GST)
Unit 200mls
Black Conformal Coating Electrolube SCC3 - 1 Litre Black Coloured

DCB is a specialist Black opaque Modified Alkyd conformal coating specifically designed for the protection of electronic circuitry while offering excellent protection.
It has been formulated to meet the highest defence standards in both Europe and the United States. DCB can be sprayed, dipped or brushed, for full product details
including test results please refer to the TDS below. If you still require further information please don't hesitate to get in touch.
Black opaque coating provides camouflage of PCB design
High chemical and solvent resistance when heat cured
Extremely wide operating temperature range
Resistant to many solvents in the Automotive and Aerospace industries.
Cured coating can be removed with Electrolube Conformal Coating Remover Gel (CCRG)
Meets UL746 standard for conformal coating
RoHS-2 Compliant
UL746C-QMJU2
Meets IPC-CC-830

DCB
Modified Alkyd Conformal Coating (SCC3)
DCB is a flexible, black opaque version of DCA designed for the protection of electronic circuitry. It has been
formulated to meet the highest defence standards in both Europe and the United States.
Black opaque coating; provides camouflage of PCB design
Heat-cured coating is resistant to many solvents used within aerospace and automotive industries
Suitable for use at temperature extremes; very wide operating temperature range
Can be reworked using specialist removal product, Electrolube CCRG
Approvals RoHS-2 Compliant (2011/65/EU): Yes
IPC-CC-830: Meets approval
UL746C-QMJU2: Meets approval
Liquid Properties Appearance: Black Opaque
Density @ 20°C (g/ml): 0.95
VOC Content: 53%
Flash Point: 27°C
Solids content: 47%
Viscosity @ 20°C (mPa s): 180 240
Touch Dry: 50 - 55 minutes
Recommended Curing Schedule*: 2 Hours @ 20°C followed by:
2 - 24 Hours @ 90°C to 120°C
*(Maximum Solvent Resistance Achieved @ 120°C; Ambient Curing Schedule: 24 Hours @ 20-25°C)
Coverage per litre @ 25µm: 18.8 m2
Cured Film Coating Colour: Black Opaque
Operating Temperature Range: -70°C to +200°C
Flammability: Meets UL94 V-1
Thermal Cycling (MIL-1-46058C): Meets approval
Coefficient of Expansion: 85ppm
Dielectric Strength: 90 kV/mm
Dielectric Constant: 4.75 @ 1MHz
Surface Insulation Resistance: 1 x 1015 ?
Dissipation Factor (@ 1MHz 25°C): 0.044
Moisture Resistance (MIL-1-46058C): Meets approval

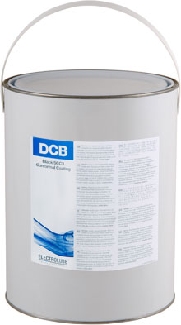

Black Conformal coating
