Conformal Coatings

FSC Flexible Silicone Conformal Coating, 400mls PRODUCT: ELFSC400
FSC Flexible Silicone Conformal Coating, 400mls
Request a quote
Unit: Each
Arriving Soon: 0
Available Now: 0
Availablity: Delivery Usually 5-7 Days - Contact Us For Updated Pricing and Availablity
Discontinued Product

FSC is a solvent based conformal coating designed to protect printed circuit boards, particularly those exposed to high humidity environments. FSC is widely used in the rail industry and is approved to IEC-61086.
Solvent based conformal coating
Flexible
Very high surface insulation resistance
Wide operating temperature range
High level of protection offered in humid environments
May be removed with solvents such as Ultrasolve (ULS)
May be soldered through for rework
Ideal for applications requiring rework; cured coating can be removed with Electrolube ULS
RoHS Compliant
Liquid Properties
Appearance: Clear translucent liquid
Packaging Size: 400mls
Density @ 20°C (g/ml): 0.96 VOC Content: 50%
Flash Point: Approx. 27°C
Solids content: 50%
Viscosity @ 20°C (mPa s): 550
Touch Dry Time @ 20°C: 10-15 minutes
Recommended Drying Time: 24 Hours @ 20°C
4 Hours @ 60°C
2 Hours @ 90°C


Dry Film Coating
Colour: Colourless
Operating Temperature Range: -50°C to +125°C
Flammability: Meets UL94 V-1
Thermal Cycling (IEC 60068-2-14): Pass
Coefficient of Expansion: 150ppm
Dielectric Strength: 80 kV/mm
Dielectric Constant: 2.7
Insulation Resistance: 1 x 1 x 10-20 Ohms/cm
Dissipation Factor @ 100Hz, 25°C: 0.001
Moisture Resistance (IEC 60068-2-78): Pass
Salt Spray (IEC 60068-2-11): Pass

Approvals
RoHS-2 Compliant (2011/65/EU): Yes
UL746E-QMJU2: Approved File Number: E138403
IEC 61086-2: Approved
IPC-CC-830: Meets Requirements
MIL-I-46058-C Meets Requirements
Approved for use in the rail industry, with IEC-61086 approval

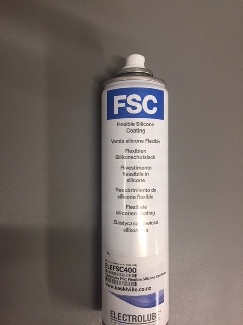

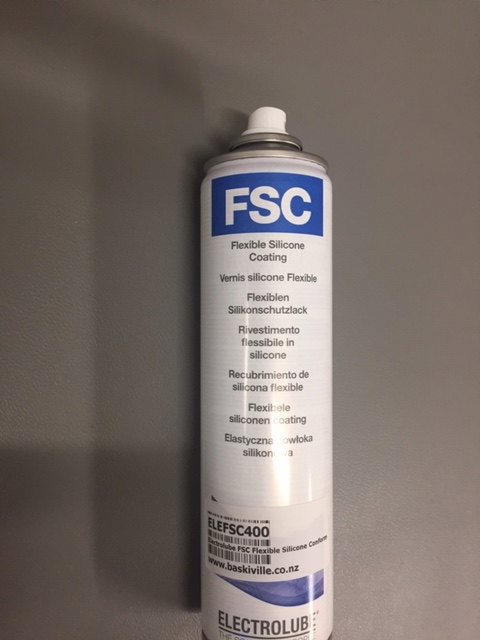

FSC400 silicone coating
