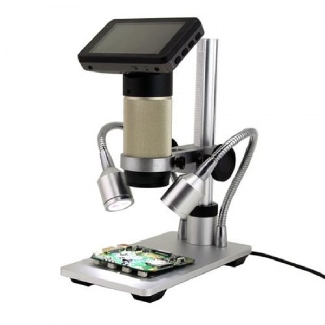

HDMI HD Video Microscope 3" - 75mm Display PRODUCT: BASL010185
HDMI HD Video Microscope 3
$375.00 (EX GST)
Unit Each
HDMI HD Digital Video Microscope (3 inch) Features & Benefits

A true working distance of 4cm - 15cm
Reasonable depth of field, no matter how complicated the structure of an object is this microscope makes it quite clear to see
Replaceable lens cap, reduces glare and prevents damage or smudging of the primary lens when soldering (spare caps available)
Real time imagery, no lag or latency
300x magnification, 1920x1080P, 30fps and high quality non-interpolate large CMOS sensor
4× digital zoom
Metal stand, sturdy and durable, very little camera shake when working on an item on the platform. The camera also supports stabilization technology
HDMI HD video output
Inbuilt LCD 960x240 resolution
Inbuilt dual lights to help illuminate your target object
Use any USB capture software to view / record the image via your PC instead of direct to a monitor with HDMI input
Take still shots as well as live video feed, save them directly to a microSD card inserted in the data slot (microSD card not included)

Image Sensor 3 Mega Pixels HD Sensor
LCD Display 3" - 75mm
Still Image 12M, 10M, 8M, 5M, 3M, 2M, 1.3, VGA
Video 1920x1080P, 1280x720P, 848x480P (WVGA),
640x480 (VGA)
Focusing Range 10mm - 150mm manual focusing
Video Format MOV
Image Format JPEG
Magnification 10X-300X (HDMI monitor 22 inch)
Frame Rate 30fps
Video Output HDMI, USB
Storage Micro-SD card, up to 32G
Light Source Double goose neck high brightness LED lights
Power 5V DC
Interface to PC USB 2.0
Operating System Win XP, Win7, Win8
