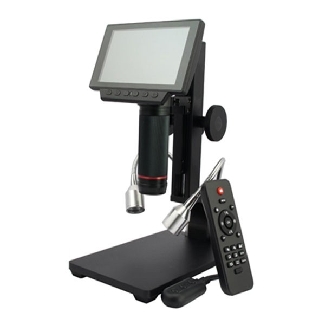

HDMI HD Video Microscope 5" - 125mm Display PRODUCT: BASL010250
HDMI HD Video Microscope 5
$575.00 (EX GST)
Unit Each
HDMI HD Digital Video Microscope (5 inch) Features & Benefits

A true working distance of 5-22cm
Reasonable depth of field, no matter how complicated the structure of an object is, this microscope makes it quite clear to see
Replaceable lens cap, reduces glare and prevents damage or smudging of the primary lens when soldering (spare caps available)
Real time imagery, no lag or latency
Up to 560 x magnification
5 inch screen
Metal stand, sturdy and durable, very little camera shake when working on an item on the platform. The camera also supports stabilization technology
HDMI HD video output
Inbuilt dual lights to help illuminate your target object
Use any USB capture software to view / record the image via your PC instead of direct to a monitor with HDMI input
Take still shots as well as live video feed, save them directly to a microSD card inserted in the data slot (microSD card not included)

HDMI HD Digital Video Microscope (5 inch) Specifications

Image Sensor 3 Mega Pixels HD Sensor

Video Output 080P Full HD (via HDMI); 720P (via PC)

Video Format Real time play via HDMI w/o recording, MJPEG recording via PC software

Magnification Up to 560 times (HDMI monitor 22 inch)

Photo Resolution 12M

Photo Format JPEG

Focus Range 5cm to 22cm

Frame Rate Max 30f/s under 600 Lus Brightness

Video Output Interface HDMI/AV

Storage Micro-SD card, up to 32G

PC Support Yes, for Windows XP/7/8/10, PC software with measurement

Power Source 5V DC

Light Source 2 LED with the stand

Screen Size 5 inch - 125mm

Stand Size 20*12*26.5cm
