OC White Rect 7.5" x 5.25" Ultraviolet Magnifier PRODUCT: OCW82400-4UV
OC White Rect 7.5
Request a quote
Unit Each

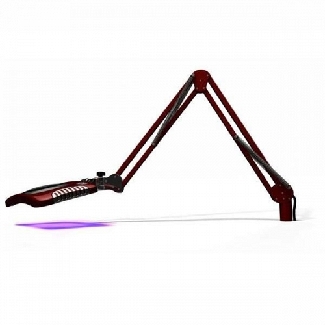

OC White Green-Lite LED Magnifier with Ultraviolet Light for Conformal Coating Inspection:

Combination lights - UV Invisible / Black Light LEDs (sides) & White LEDs (back)
Large rectangular, 178mm x 133mm (7'' x 5'') 4 Diopter (2x) lens
1.09m (43'') reach
ESD safe
Clamp base
Full dimming and quadrant contrast control
Multi angle LEDs for shadow less lighting at many focal lengths.
The specialized design of our Green-Lite Ultraviolet/Visible LED inspection lamp combines two fixtures into one! This fixture can be used in Combination mode, Ultraviolet only, and White light only.

LED Magnifying Lamp / Mag Lamp, equipped with next generation, surface mount LEDs, these innovative designs create the new standard for illuminated magnifiers. Your investment in new technology quickly pays for itself through energy savings. Made in the USA.

See table below for options - also available in a range of colours

UV Specification:

UV LEDs installed are UV-A 395nm
The UV-A range is between 400nm & 10nm

Lighting Features:

Highest lumen output in a lighted magnifier
Reduced glare, heat and energy consumption
Multi-angle LEDs for shadow less lighting at a full range of focal lengths and heights
User controlled LED groups shine desired level of light exactly where required
Superb dimming software via convenient, reliable membrane switch

Optical Features

Precision ground, optical grade glass
Largest lenses in the industry
2x (4 Diopter) lens O.C. White exclusive

Electrical Features

Low voltage (15-24v) power supplies are auto-switchable with worldwide approvals
Plug in around the world by simply switching the end power cord
Energy Star compliant (each unit uses 8 watts maximum)
Auto shut off at 4 hour intervals (8 hours optional) to prevent energy waste while users are away

Mechanical Features:

Clamp Size 25 - 65mm
High quality die cast aluminium shades and all steel arm components for ESD safety
Patented Elite arms are slim but have the greatest holding power of any arm of this type in the world
Virtually maintenance zero


5 years or 50,000 hours pro-rated LED warranty
10 year mechanical warranty best in the business
