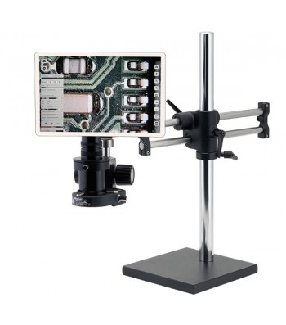

OC White Video Inspection Camera, HD Integrated Inspection - Ball Bearing Base - No Light PRODUCT: OCWTKSS
OC White Video Inspection Camera, HD Integrated Inspection - Ball Bearing Base - No Light
$6,584.00 (EX GST)
Unit Each
Super-Scope® HD Integrated Inspection is the ultimate ergonomic inspection station! This unique inspection system boasts features found on much more expensive equipment. Its freestanding design allows for use anywhere on the manufacturing ?oor....no need for a PC! Compatible with all Micro-Lite® Illuminators.
ESD Safe. No light (Light source sold seperately).
Standard Features:
5MP Hybrid HDMI/USB Camera with Advanced Onboard Imaging Controls
Unlimited Working Distance 6inch to Infinity
Up to 80x Magnification with options
24inch Tall HD Double Ball Bearing Base
Integrated 12inch Screen with 300dpi resolution

Onboard Software Features (No PC Required):
Image & Video Capture
Browse Saved Images
Split-Screen Compare
Calibrated Measurement
Digital Zoom with H/V Image Invert
Region of Interest cropping
Crosshair Overlay
Calibration Bar
Data Export to Excel or TXT File
Name: Super-Scope® HD Integrated Inspection - Ball Bearing Base - No Light
SKU: TKSS
Product Line: Super-Scope®
Magnification: 1-40x (up to 80x with options)
Reach: No
Mounting Style: Ball Bearing Base
Voltage: 100 Volt - 240 Volt
ESD Safe: Yes
Prop 65 Warning: N/A
Light Source
FL1000, Flicker-Free Hi/ Low Fluorescent
FV1000, Flicker-Free, Dimmable Fluorescent
LV2000, High Intensity Dimmable LED
FL3000-A "Annular Fiber" Optic
FL3000-D, "Dual-Point" Fiber Optic

Also available is the table edge or bolt through option part number OCWTKMACZ-FA
