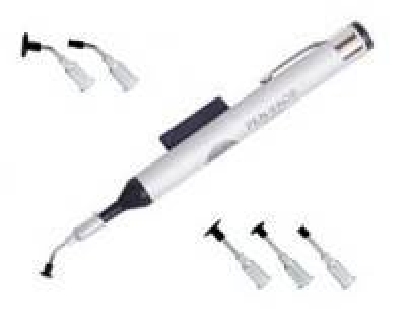

Vitual Industries Pan Vac Kit w/ 6 Tips (Short Body)

PEN-VAC, ESD safe, 5" silver body, kit with (3) bent and (3) straight probes with (2) each
1/8", 1/4", 3/8" diameter meter Buna-N vacuum cups.


The PEN-VAC is totally self-contained. There are no batteries or hoses to get in the way.
Operation is as follows:
1. Select a tip with a rubber vacuum cup on a probe that is slightly smaller than the part
you want to pick and place. Put the probe snuggly on the tip of the vacuum pen. Make
sure that there is no dust on the rubber vacuum tip.
NOTE: Our larger rubber vacuum cups can be placed directly on the vacuum pen tip
without using a probe.
2. Depress AND hold the button on the side of the tool.
3. Touch the vacuum tip squarely to the part and release the button. The part is now
grasped.
4. Move the part to where you want it and depress the button again. The part is now
released.
NOTE: This tool works only with the rubber vacuum tips. The rubber is required for an
air-tight seal.
