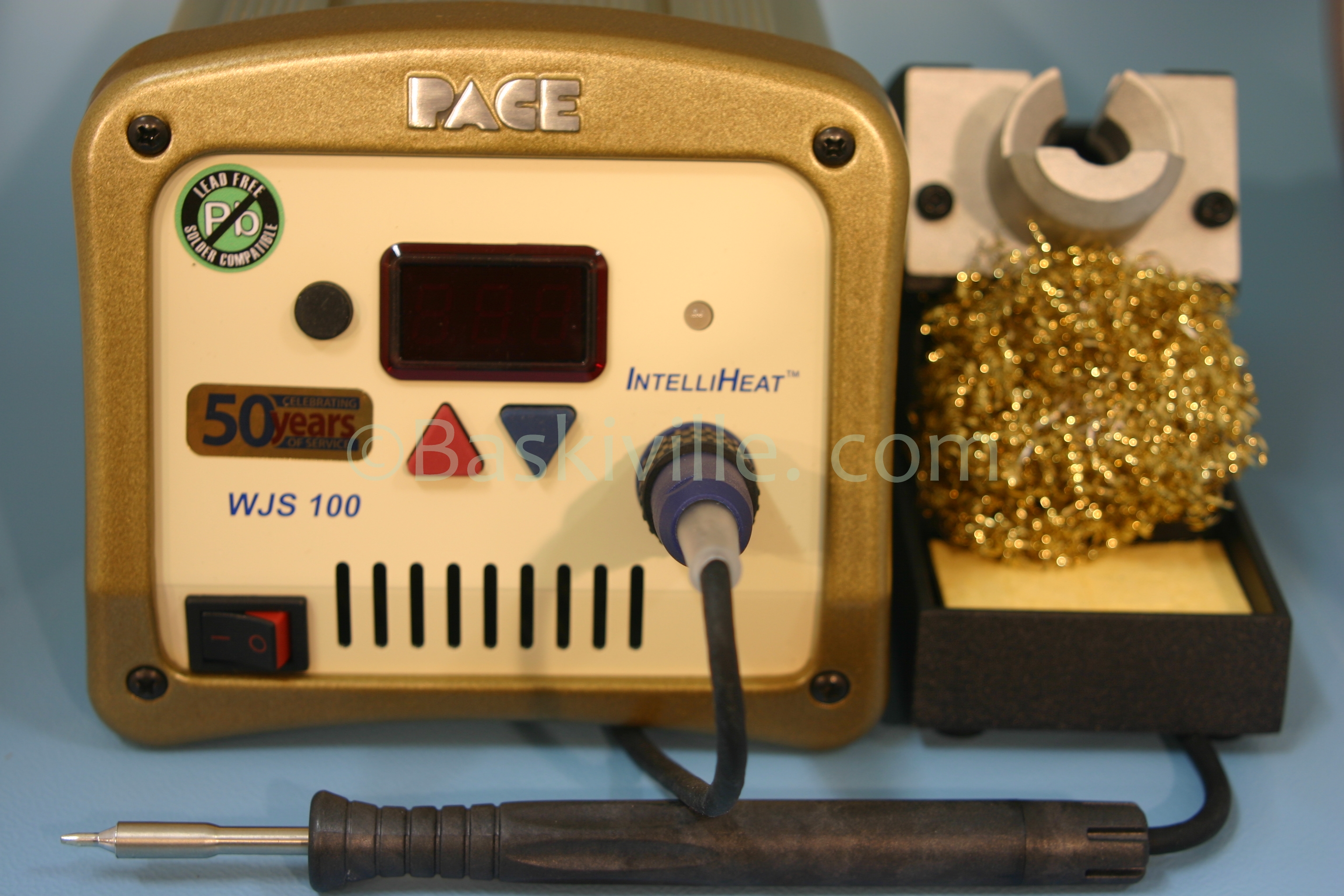

WJS 100 HIGH OUTPUT
NLA

Soldering Station with TD-100 Iron and Instant Setback Cubby. ( ISB)
There has been anupgrade or too
Have a look at the new PACE ADS200 below

Replacement 8007-0580 or 8007-0581

No Longer available see replacement options

The WJSTM 100 features all the advanced process control technology you have grown to
expect from PACE but now with nearly twice the maximum power output to make easy work of your most challenging,
high-thermal-mass or high-volume soldering applications.

Integral to the WJS 100 solution is a special range of gold-end tip-heater cartridges uniquely engineered to deliver
maximize heat through-put to the work and increase productivity while allowing you to solder at safer,
lower temperatures-- even with lead-free solder.

This machine uses the 1128 series tips only

The WJS-100 is fully programmable, loaded with features, and incorporates PACE’s
exclusive IntelliHeat Control Technology. The WJS-100 comes standard with a special
anniversary edition of PACE’s renowned
TD-100 Thermo-Drive® Handpiece, considered by many to be the most comfortable
soldering handle available. But don’t take our word for it. Try one today!

Features:



· PACE’s Exclusive IntelliHeat Control Technology

· Fully programmable, digital processor, LED display and keypad.

· Password lockout guarantees your process integrity

· Temp Setback and Auto-Off helps to maximize tip life and saves on power costs.

· Definable Operating Temperature Range via Hi and Low Setting

· Nearly twice the maximum power output increases productivity at safer, lower temperatures - even on the heaviest loads.

· Lower Cost of Ownership

· ISB Cubby places the iron into setback after 30 seconds of non-use. This significantly extends tip life, especially when working with lead free solders.


Power Requirements: 197-253 VAC, 50/60Hz, 120 Watts Max
Dimensions: 104mm (4.1") H x 130mm (5.1") W x 152mm (6.0") D
Weight: 2.3Kg (5 lbs.)
Control Interface: LED Display, 3 Buttons, and fully programmable menu
Control Technology: IntelliHeat
Temperature Accuracy: Meets or exceeds ANSI-J-STD
Absolute Temperature Stability: 1.1°C (° 2 °F) at idle tip temp.
Temperature Range: 205° to 454°C (400° to 850°F) Nominal
Tip to Ground Resistance: 2 ohms or less
System Can be Calibrated: Yes
Tips: 1128 Series Tips Only
Handpiece: Commemorative 50th Anniversary TD-100


This is lead free solder compatible product
