Fume Extraction & Spares

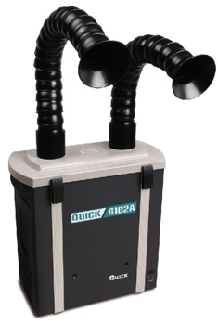

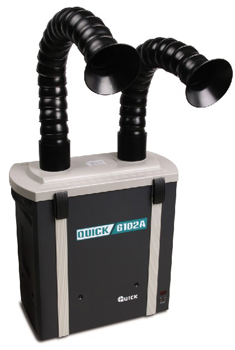

Quick 6102, Fume Extractor With Hoses & Absorbers
Features
1. It is very easy for you to install the fume extractor due to the integrated structure, which requires no extra pipelines.
2. The pre-filter, middle filter and the main filter are separately installed on the machine. So you can replace the broken one separately. The triple filtration removes the hazardous substances from the fume to bring you a safe and healthy environment.
3. Low noise caused during operation.
4. The large power DC fan without brushes will generate large air flow.
5. To avoid discharging the cool/hot air outside, this fume extractor is designed with built-in air cycling filtering system.
6. You can adjust the air flow and the arms according to the practical demand.

Specifications
Static Pressure 2200Pa
Airflow 320m3/h
System Flow(including filter mechanism) 200m3/h
Power Consumption 120W
Noise 55dB
Dimensions 470(L)×230(W)×500(H)mm
Quantity of arms 2
Weight About 15.5kg

Note: the length of arms can be customized as per requirements.

6102_TDS
