Hand Soldering, Desoldering & Hot air

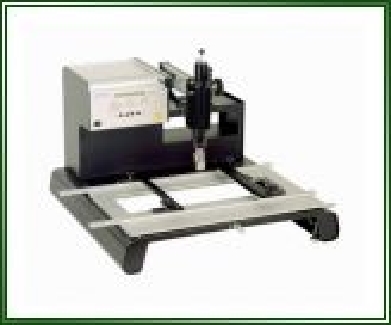

The ST 350 is the ultimate in cost effective, programmable, convective rework equipment. No other system on the market at the same price level can compete! Rework Nozzles sold separately

The system is completely self-contained and is capable of installing virtually
any type of surface mount component. The system is ideal for service centres,
prototyping shops, low volume production or remanufacturing centres that
want to purchase a single piece of equipment that can handle just about
anything!

* Multi-level password lock-out prevents unauthorized changes
* User definable temperature zone
* Audible countdown timer for end of cycle indication in the Timed and Program modes
* Store and recall up to 20 profiles (40 with optional software)
* Quiet-Flo turbine blower offers nearly silent operation
* On-screen display of parameters (temperature, time) during operation
* Integrated PCB holder with micro meter adjustments.

Power Requirements: 197-253 VAC, 50/60 Hz, 575Watts max.
Dimensions: 578mm H x 930mm W x 665mm D (22.75" H x 36.75" W x 26.25"D)
Weight: 26.4Kg (58lbs.)
Temperature Control: Closed loop, digital temperature control
Temperature Stability: 9°C (° 15 °F) at idle tip temp.
Temperature Range: 176°to 482°C (350°to 900°F) nominal
Airflow: 5-22 slpm

8007-0438-Manual.
