Hand Soldering, Desoldering & Hot air

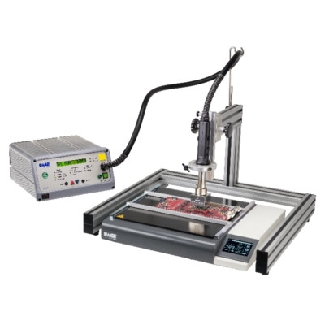

A SMT rework system that combines three popular PACE products together into one convenient, low-cost SMT Rework System.

*The ST925 features a self-contained convective/hot air SMT rework station that is fully programmable and can be used to remove and install surface mount components.
*From the front panel, the system can be used in either manual or timed modes. Manual mode means that the system generates heated airflow when the cycle button is pressed; when it is pressed a second time the system shuts off. Timed modes allow the operator to create up to 20
Profiles that consist of time and temperature parameters to ensure process control and repeatability.
*The system uses a pump to generate airflow that first passes through a heater, where it is warmed to the appropriate temperature, and then through optionally available heat-focusing nozzles that “shape” the air stream for the specific component.
*A user-friendly front panel interface with Digital Display allows for easy adjustment of temperature, flow rate and timing and intuitive programming and profile development.
*A unique adapter allows instant change out of Nozzles, without tools. Over 80 low-cost Nozzles are available for a wide variety of surface mount components.
*Together, the system provides a powerful 575 Watt convective top-side heater plus a 1600 Watt IR bottom-side preheater which allows operators to safely rework PCBs for fast, efficient soldering, rework or repair, even on the highest mass, thermally challenging, lead-free PCBs.

Refer to the brochure in Data Sheet section and the individual product notes/ techical data/ specificatios for the ST325, ST500A and PH100.

1 x ST325 Programmable Convective/Hot Air Rework Station. Note: The ST300 Dial Hot Air Analogue Rework Station will wok with this system also if you would prefer.
1 x PH 100 Low Profile Infrared Preheater
1 x ST 500A Z-Axis Platform.

ST925_Brochure
