Hand Soldering, Desoldering & Hot air

140 watt soldering iron and tips
140 watt soldering iron and tips

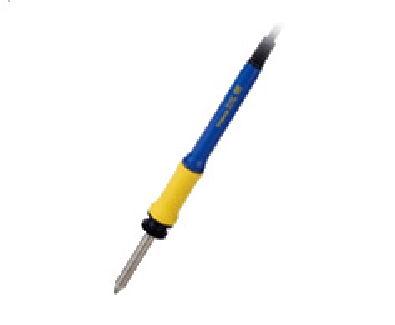

Hakko Soldering Iron Kit Heavy Duty,140W

High powered 140W soldering iron with high heat capacity
Best suited for soldering of power-supply boards, heat sinks, shield cases and coaxial cables
Also applicable for multilayer boards with micro components

For the HAKKO FM-2030, soldering iron tips are not supplied as accessories. Please separately purchase "T22 Series" soldering iron tips.

IMPORTANT.
PLEASE READ:
The FM-2030 can only be attached to the Hakko FM-203 "D" port, and the Hakko FM-206 CH2 or CH3 ports.
If you attach the iron to any other port, a grip error or connector error (C-E) will occur.

Note: The FM-203 stations with serial numbers before 02203211002129 will require the purchase of an upgrade.
Due to the upgrade process requirements, upgrades cannot be performed in the field.
Stations must be returned to American Hakko under a CASE for this upgrade, at which time the upgrade (PN: FM203-UPGR) can be purchased with the FM2030-02 kit and your selection of T22 tips.
FM203 FM206
Hakko Soldering Iron Kit Heavy Duty,140W PRODUCT: HKFM2030-04
Hakko Soldering Iron Kit Heavy Duty,140W

High powered 140W soldering iron with high heat capacity
Best suited for soldering of power-su...
$262.60 (EX GST)
Available Now: 0
Hakko Soldering Iron Kit Heavy Duty,140W
SOLDERING TIP SHAPE-2BC FOR FM-2030. FM-2031 PRODUCT: HKT22-BC2
$59.97 (EX GST)
Available Now: 0
No image
Soldering Tip Shape BL For FM-2030. FM-2031 PRODUCT: HKT22-BL
Soldering Tip Shape BL For FM-2030. FM-2031
$59.97 (EX GST)
Available Now: 0
Soldering Tip Shape BL  For FM-2030. FM-2031
SOLDERING TIP SHAPE-2BL FOR FM-2030. FM-2031 PRODUCT: HKT22-BL2
T22 Series Conical Tip
to fit FM-2030 and FM-2031 Heavy Duty Soldering Iron Handpiece
$59.97 (EX GST)
Available Now: 0
SOLDERING TIP SHAPE-2BL  FOR FM-2030. FM-2031
SOLDERING TIP SHAPE-3C FOR FM-2030. FM-2031 PRODUCT: HKT22-C3
Heavy Duty Bevelled Tip
3mm/60° x 17mm, Shaped like column cut at a slant
$59.97 (EX GST)
Available Now: 0
SOLDERING TIP SHAPE-3C  FOR FM-2030. FM-2031
SOLDERING TIP SHAPE-5C FOR FM-2030. FM-2031 PRODUCT: HKT22-C5
Heavy Duty Bevelled Tip
5mm/45° x 10mm, Shaped like a column cut at a slant
$59.97 (EX GST)
Available Now: 0
SOLDERING TIP SHAPE-5C  FOR FM-2030. FM-2031
SOLDERING TIP SHAPE-6C FOR FM-2030. FM-2031 PRODUCT: HKT22-C6
Heavy Duty Bevelled Tip
6mm/45° x 10mm, Shaped like a cone or column cut at a slant
$59.97 (EX GST)
Available Now: 0
SOLDERING TIP SHAPE-6C  FOR FM-2030. FM-2031
SOLDERING TIP SHAPE-0.8D FOR FM-2030. FM-2031 PRODUCT: HKT22-D08
Heavy Duty Chisel Tip
0.8 x 12mm, Shape like a Flat-blade screwdriver
$59.97 (EX GST)
Available Now: 0
SOLDERING TIP SHAPE-0.8D  FOR FM-2030. FM-2031
SOLDERING TIP SHAPE-1.2D FOR FM-2030. FM-2031 PRODUCT: HKT22-D12
Heavy Duty Chisel Tip
1.2 x 10mm, Shape like a Flat-blade screwdriver
$59.97 (EX GST)
Available Now: 0
SOLDERING TIP SHAPE-1.2D  FOR FM-2030. FM-2031
SOLDERING TIP SHAPE-1.6D FOR FM-2030. FM-2031 PRODUCT: HKT22-D16
Heavy Duty Chisel Tip
1.6 x 12mm, Shape like a Flat-blade screwdriver
$59.97 (EX GST)
Available Now: 0
SOLDERING TIP SHAPE-1.6D  FOR FM-2030. FM-2031
Hakko T22 Series Solder Tip, Shape D PRODUCT: HKT22-D24
For use in the HKFM-2030 (140W) handpieces which fits the HKFM-206 soldering station
Hakko T22-D45 Heavy Duty Chisel Tip
2.4 x 7mm, Shape ...
$59.97 (EX GST)
Available Now: 0
Hakko T22 Series Solder Tip, Shape D
SOLDERING TIP SHAPE-3.2D FOR FM-2030. FM-2031 PRODUCT: HKT22-D32
For the FM-2030 and FM-2031 Heavy Duty Soldering Iron Handpiece
3.2 x 8mm
$59.97 (EX GST)
Available Now: 0
SOLDERING TIP SHAPE-3.2D  FOR FM-2030. FM-2031
Soldering Tip Shape -4.5D For FM-2030. FM-2031 PRODUCT: HKT22-D45
Soldering Tip Shape -4.5D For FM-2030. FM-2031
4.5 x 15mm, Shape like a Flat-blade screwdriver
$59.97 (EX GST)
Available Now: 0
Soldering Tip Shape -4.5D  For FM-2030. FM-2031
SOLDERING TIP SHAPE-5.2D FOR FM-2030. FM-2031 PRODUCT: HKT22-D52
Heavy Duty Chisel Tip, 5.2 x 8mm, Shape like a Flat-blade screwdriver
$59.97 (EX GST)
Available Now: 0
SOLDERING TIP SHAPE-5.2D   FOR FM-2030. FM-2031
SOLDERING TIP SHAPE-0.2J FOR FM-2030. FM-2031 PRODUCT: HKT22-J02
0.2mm/30° x 4mm x 11mm
$70.16 (EX GST)
Available Now: 0
SOLDERING TIP SHAPE-0.2J  FOR FM-2030. FM-2031
SOLDERING TIP SHAPE-0.8JD FOR FM-2030. FM-2031 PRODUCT: HKT22-JD08
Heavy Duty Bevel Chisel Tip
0.8mm/30° x 6.3mm x 4.5mm
used for drag soldering and bridging correction
for the FM-2030/FM-2031
$70.16 (EX GST)
Available Now: 0
SOLDERING TIP SHAPE-0.8JD  FOR FM-2030. FM-2031
Soldering Tip Shape K For FM-2030. FM-2031 PRODUCT: HKT22-K
Soldering Tip Shape K For FM-2030. FM-2031
R5mm/45 Deg. x 15mm, with built-in heating element
$70.16 (EX GST)
Available Now: 0
Soldering Tip Shape K  For FM-2030. FM-2031
