Metcal MFR-1110 Single Output Soldering Station PRODUCT: METMFR-1110

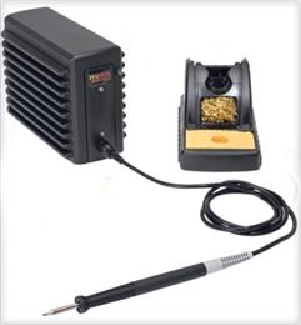

Metcal MFR-1110 Single Output Soldering Station
$786.86 (EX GST)
Unit Each
Arriving Soon 0
Available Now 0
The MFR-1110 Single Output Series is highly versatile in that it can be used with either a soldering tip, cartridge or tweezers and offers a choice of four hand-pieces.
•SmartHeat® Technology provides exceptional power for high thermal demand applications.
•Four hand-pieces available for increased application solutions for soldering and rework on one system
•Each hand-piece has a comprehensive range of cartridges or tips for maximum flexibility
•Hand-pieces are ergonomic for operator safety and comfort
•Small Bench Top foot print
•Can be combined and locked with its brother the MFR-2200 dual output series for increased application solutions for soldering and rework.
Power Supply
Ambient Operating Temperature: 10 - 40°C (50°F - 104°F)
Maximum Enclosure Temperature: 55°C (131°F)
Input Line Voltage: 100 - 240 VAC
Input Line Frequency: 50/60 Hz grounded circuit
Power Consumption: 65 Watts maximum
Output Power: 60 Watts maximum
Output Frequency: 450 KHz
Power Cord: (3-wire) 183 cm 18/3 SJT
Dimensions (approx.) W x D x H: 90mm x 200mm x 152.5mm
Weight: 2.3kg (5.05 lbs)
Surface Resistivity: 105-109 Ohms
Certification / Marking: cTUVus, CE

Handle and Work stand
Tip-to-Ground Potential: < 2 mV RMS
Tip-to-Ground Resistance: < 2 ohms
Idle Temperature Repeatability: +/- 1.1°C (2°F) in still air
Handle Cord Assembly Length: 122cm - burn proof, ESD safe, Connector 8-pin circular DIN
Work stand W x D x H: 100mm x 200mm x 100mm.
Work stand Weight: 0.69 kg
•MFR-PS1100 MFR Single Output Power Supply
•MFR-H1-SC MFR Soldering Cartridge Hand-piece
•WS1 Soldering Work stand compatible with MFR-H1- SC Hand-piece

NOTE: No tip/cartridge included
