Pace IR4100 Infrared Rework Station 230 Volt PRODUCT: 8007-0592
Pace IR4100 Infrared Rework Station 230 Volt
Request a quote
Unit: Each
Arriving Soon: 0
Available Now: 0
Availablity: Delivery Usually 5-7 Days - Contact Us For Updated Pricing and Availablity

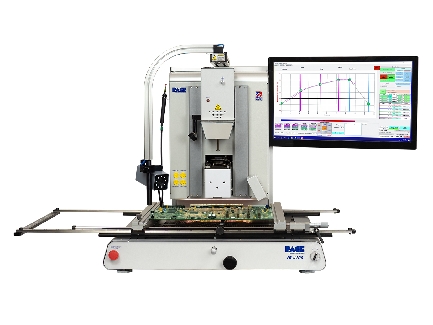

IR4100 Infrared BGA Rework Station
The IR 3100 can easily install and remove BGA, QFN, µBGA/CSP, Flip Chip and other SMD's.
Featuring a 500W infrared (IR) top heater and a 1000W IR bottom preheater, the IR 3100 does not require nozzles.
A specially-developed IR pyrometer provides non-contact, real-time, closed-loop temperature control throughout the reflow process.
A Sodr-Cam Reflow Camera comes standard, allowing you to watch the entire reflow process in real time.
The IR 3100's newly designed Windows-based software makes profiling incredibly simple for even the most advanced applications,
providing intuitive set-up, multi-stage profiling, on-the-fly profile adjustment, flux-dipping, unlimited profile storage and much more.

The IR4100 is specifically designed to rework large PCBs as big as 24"(610mm) x 24"(610mm). With its 6 independently controlled peripheral IR bottom heaters,
the operator will be able to create an effective heating profile with ease, without fear of reflowing nearby components or joints.
The IR4100's uniquely designed Board Support Beam will keep any board from possible warping or sagging during a heating profile.
Non-Contact IR Pyrometer
Ultra-High Precision Placement Capability
High Sensitivity Vacuum Pick
Sodr-Cam Reflow Camera
Height Adjustable Bottom-Side Preheater
High-Definition Optical Alignment System
Quad-Field Imaging for Large/Fine Pitch BGA's
Integrated Board Support Wand
Power Distribution Graph
Sensor Offset
610mm x610mm Board holder
6 Indepndly Controlled Peripheral Bottom Heaters

Power Requirements
120 VAC, 50/60 Hz (1550 Watts maximum) || 230 VAC, 50 Hz (1550 Watts maximum)
Dimensions - 737mm H x 1118mm W x 965mm D
Weight (Without Computer) 90Kg
Top-side Heater - Medium/Long wave IR, 500 Watts
Bottom-side Preheater - Medium/Long wave IR, 1900 Watts with array of 7 IR emitters capable of preheating large, high mass assemblies
Bottom-side Preheater Working Height - Adjustable working height from lowest position up to 38mm closer to the PCB
High Sensitivity Vacuum Pick- Pick is counterweight balanced, and utilizes an optical sensor and precision high temperature linear ball bearings, ensuring delicate placement and pick up of parts from PCB. Includes six (6) Vacuum Picks
Precision Placement Capability Advanced professional placement system utilizing a stepper motor and position encoding provides smooth, precise movement, with no drift, allowing for repeatable and accurate placement.
Placement Accuracy Stepper motor with precision positioning of to 28µm (.0011") accuracy
Board Support Capability - Integrated Board Support Wand prevents PCBs from sagging/warping during rework and is adjustable to clear parts on bottom of PCB
Maximum Target Temperature - Each profile zone has a maximum target temperature of 328 °C (624 °F)
Precision PCB Holder - Advanced table features micrometer X & Y adjustment, extruded board holder arms, spring loaded, with T-slots and movable clamps for both large and irregularly shaped boards with non-uniform edges
Maximum/Minimum PCB Size - Maximum 610mm x 610mm ; Minimum: N/A arms close down completely.
Maximum/Minimum Component Size Maximum - 65mm x 65mm ; Minimum: 1mm Sq.
IR Pyrometer and Thermocouple Inputs - A specially developed IR sensor provides non-contact, real-time, closed-loop temperature control throughout the reflow process. In addition, four (4) thermocouple inputs provide additional real-time monitoring (includes 2 K-type thermocouples)
High Definition Optical Alignment System - Vision Overlay System (VOS) with High Definition (1080p) color camera, integrated frame grabber, dichroic beam-splitting prism, independently controlled LED illumination for component and PCB. Up to 240x zoom capability and Stable Zoom.
Motorized Optics Housing Sodr-Cam Allows the developer to watch the entire reflow process in real time to verify solder melt. The camera arm rotates to provide a 180-degree view at a fixed distance, for minimal focus adjustment and ease of use.
Quad-Field Imaging - For large component alignment (including fine-pitch QFPs), allows up to four opposite corners of a large component (and its pads) to be viewed under higher magnification
Single Axis Operation - All operations, including component pick-up, alignment, placement, reflow & active cooling are completed in a single axis, eliminating risk of component movement after placement and reflow.
Auxiliary Cooling Fan - Standard, for secondary cooling of the PCB
Component Nests - Two (2) removable and adjustable Component Nests provided for perfect centering of components, in preparation for vacuum pick-up/placement. Optional component holding system for parts under 5mm Sq.
Flux Dip Plate - Included; allows for automated flux dipping
Stencils/Solder Paste - Over 145 stencil kits are optionally available (requires Universal Bracket Kit) and are integrated into the installation process

Ultra-High Precision Placement Capability: Motorized reflow head is driven by advanced stepper motor system providing smooth, high precision, repeatable movement with no drift, allowing for soft landing of components and 28µm (.0011") placement accuracy.

High Sensitivity Vacuum Pick: New Vacuum Pick design is more robust, utilizes an optical sensor, is counterweight balanced, and employs precision high-temperature linear ball bearings for maximum accuracy and sensitivity in placement and pick-up.

Sodr-Cam Reflow Camera: Provided Sodr-Cam allows the operator to verify the entire reflow process, including the exact moment of solder melt.

Height Adjustable Bottom-Side Preheater: High powered (1000W) IR preheater height is adjustable from standard position up to 38mm (1.5") closer to the PCB for the most challenging high-thermal -mass boards.

High-Definition Optical Alignment System: Automated Vision Overlay System uses a beam-splitting prism, high intensity LEDs for shadow-free lighting and a new high definition 1080p camera for easy alignment.

Quad-Field Imaging for Large/Fine Pitch BGA's: Allows up to four corners of a large component (and its lands) to be viewed under high magnification, providing perfect alignment of outsized BGAs or fine-pitch QFPs.

Integrated Board Support Wand: Prevents warping or sagging during reflow, is extremely adjustable to clear parts on the bottom of PCB and is easily removed when not in use.

Power Distribution Graph: Provides a graphical analysis of the top heater output within each zone, helping the developer make necessary adjustments to either the bottom heater utilization, or ramp rate, to maximize thermal performance.

Sensor Offset: Allows the developer to easily match the pyrometer temperature reading to the actual solder temperature
