Bench and Floor Earthing

Bench Mat Kit - Blue 2ft x 4ft 1.22m x 600mm PRODUCT: BASP1.22KITBLUE
Bench Mat Kit - Blue 2ft x 4ft 1.22m x 600mm
$195.00 (EX GST)
Unit: Each
Arriving Soon: 0
Available Now: 0
Availablity: Delivery Usually 5-7 Days - Contact Us For Updated Pricing and Availablity

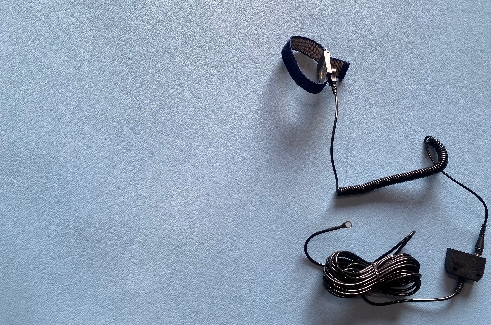

Bench mat - Blue 2ft x 4ft, 1.2m x 600mm includes:
1 x Mat 1.2m x 600mm
Wrist Strap p/n USUC-WS2ADB
Ground Cord w/ resistor 10mm, w/ 2 outlets p/n MEC06Z-001
1 x Fitted Snap Socket


STAT-MAT SPEC.
2 LAYER DISSIPATIVE RUBBER FLOOR MAT

* Easy to clean
* Resistant to heat and chemicals
* Reflection breaking lightly embossed surface

CONSTRUCTION

STAT-MAT protects static sensitive products
as it is composed of two layers, with the
following characteristics:

TOP LAYER
(Coloured) Static dissipative layer to
discharge static fields at the
right speed to prevent damages

BOTTOM LAYER
(Black)

Conductive layer to quickly
drain to ground all charges
filtered by the top layer

MAIN CHARACTERISTICS

* Reflection breaking embossed surface to reduce glare and improve
operator performance
* High resiliency gives protection against small collisions
* Prevention of sliding of delicate components due to the high
coefficient of friction, which is increased by the embossed surface
* Heat Resistance: This high quality rubber compound does not
melt and does not burn coming into contact with hot metal parts
or soldering debris
* High chemical resistance
* Oil resistant
* Suitable for free laying (does not require application with adhesives)
* Suitable for continuous monitoring

AVAILABLE in GREY or BLUE

PRODUCT PERFORMANCES

Surface Resistance:

EN 100015.1 = 5 x 10*6 - 5 x 10*8
EOS/ESD.S4.1990/100 V = 1 x 10*7 - 1 x 10*8
EOS/ESD.S4.1990/10 V = 1 x 10*7 - 1 x 10*8


Resistance/Ground:
EN 100015.1 = 5 x 10*6 - 5 x 10*8
EOS/ESD.S4.1990/100 V = 1 x 10*6 - 1 x 10*8
EOS/ESD.S4.1990/10 V = 1 x 10*6 - 1 x 10*8

Charge Decay:

FED TM 101 = (from 5000 to 50V) = 0.1 sec.


Lifetime dissipation warranty

*One (1) ground lead is recommended for each 10 linear feet (3 metres) for optimum
performance.
