Bench and Floor Earthing

915mm wide x 1524mm long x 11.5mm thick

Exceeds ANSI/ESD S20.20 minimum technical requirement range of <1 x 10E9
ohms for ESD floor
Engineered to exceed the S20.20 requirements for Primary Operator Ground for
mobile operators wearing the proper ESD Foot Grounders of <3.5 x 10E7 ohms
resistance of Operator to Ground
Mat resistance of <10E6 ohms - Conductive as defined by ANSI/ESD S7.1-2005
Resistive Characterization of Materials Floor Materials
Suitable as floor component in ESD STM 97.1 floor-footwear system
Homogeneous vinyl material laminated to double-thick rubber foam base; provides
anti-fatigue properties for worker comfort and productivity
Adopted from industrial safety applications; proven safety and anti-fatigue product

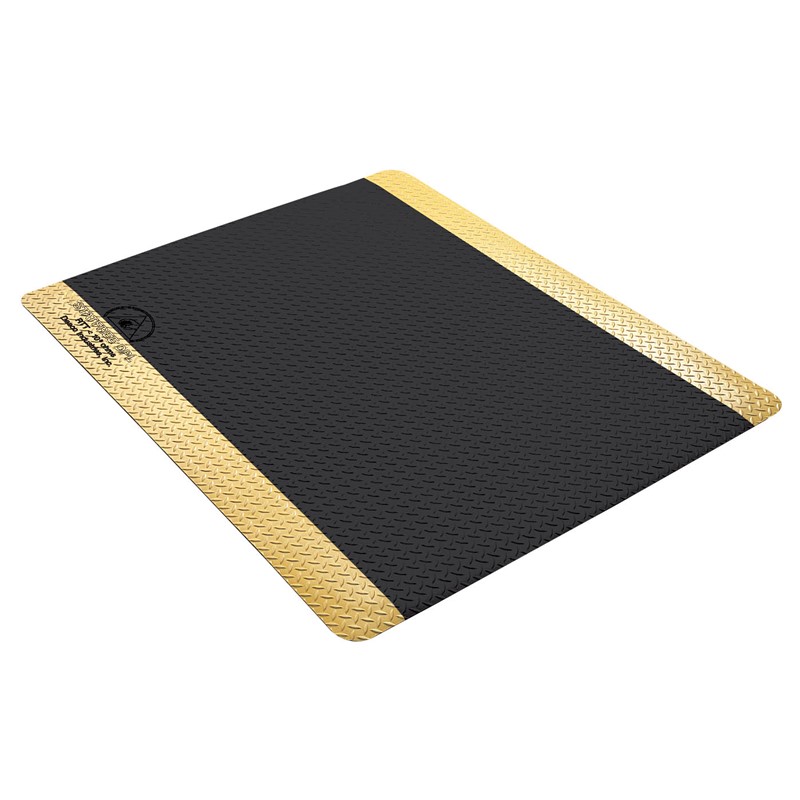

Diamond plate surface; provides traction in wet areas
Laser engraved with ESD protective symbol, manufacturer, material type, and
date/lot code - permanently identifies mat as an ESD protective mat
RTT: 10E3 - 10E5 Ohms per ANSI/ESD S7.1
Thickness: 0.45"
Lead-free RoHS compliant
Made in the United States of America


ESD protective flooring, used with approved footwear, may be used as an alternative to
the wrist strap system for standing operations.” (ANSI/ESD S20.20 section 6.2.2.2 Personnel
Grounding Guidance)

The use of floor materials to control personnel or equipment generated static has a number of
benefits. Floor materials tend to be passive. Employees who work in areas protected with floor materials simply need to wear and test the appropriate footwear. They do not need to implement any additional actions themselves to assure that the floor material is functioning properly.” (ESD Handbook TR20.20 section 5.3.4.4)

DES40981 TDS.
