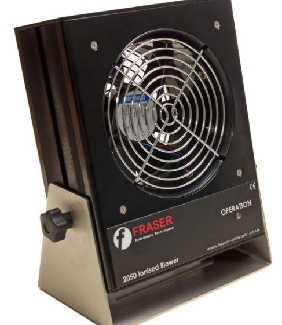

The 2050 Series is a range of high specification ionised air blowers with integrated power units and controls.
Suitable for most industrial and technology applications, the 2050 Series meets the demanding requirements of the electronics, medical, pharmaceutical and RFID industries.
High performance ionisation with balance of +/- 30 V
Adjustable airflow to 170 m3/hr (100 cfm), ball-bearing fan rated at 120,000 hours at 40 °C
LEDs showing function OK or out of specification
Compact, portable and easy to use, with an adjustable stand for mounting
Position 200 to 600 mm from the material to be neutralised
Supplied with 90 V to 250 V, 50/60 Hz power supply, the 2050 Series is available in four versions:
2050 ,165 mm body (one fan) . Must be earthed (lead supplied)
Construction
Aluminium, adjustable stainless steel stand.
Dimensions
2050, 165 mm (L) x 200 - 250 mm (H) x 113 mm (D)
Neutralisation/Charge Reduction
5000 V to 500 V < 1 second at 300 mm.
Safety
Visual alarm if there is a fault with high voltage output.
Ion Balance
The ion balance is factory set to +/- 30 V. Where this is critical it should be checked as required. Balance is adjusted with a 2 mm screw driver.
Air Flow Per Fan
Adjustable up to max of 170 m3/hr. (100 cfm).
Noise
Low speed: 45 dB. High speed: 56 dB.
Electrical Input
The 2050 Blowers operate with 12 V DC. A 90 V - 250 V, 50/60 Hz mains adapter is supplied with the equipment. The 2050 must be earthed, an earth lead is provided.
Environmental
0 - 60 °C temperature, 70 % rH non-condensing max.
Options
Filter, with replaceable element.
