Effective Ionisers for Anti-Static Control

Fraser 4510 Flat Ionised air nozzle PRODUCT: FRA4510

Request a quote

Unit: Each

Arriving Soon: 0

Available Now: 0

Availablity: Delivery Usually 5-7 Days - Contact Us For Updated Pricing and Availablity

The 4510 is part of Frasers comprehensive range of cleaning products for removing dust and static electricity from mouldings, assemblies, PCBs, automobiles, graphics, optics and medical parts.

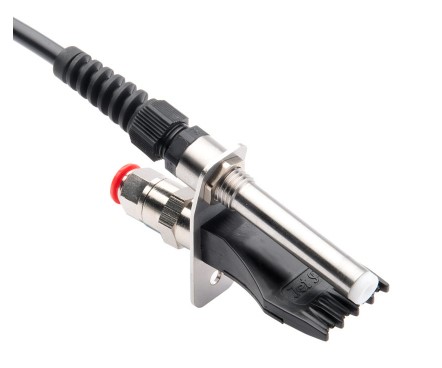

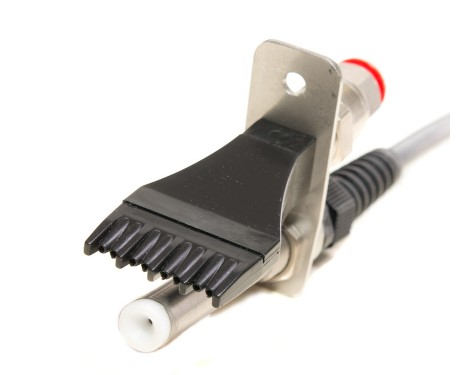

The 4510 Ionised Air Nozzle produces a fast, quiet and flat jet of ionised air for efficient static neutralisation and cleaning.

Up to 6 kV of ionising power provided by a Fraser HP Power Unit thoroughly neutralises the static charge, allowing dust removal without the risk of re-attraction
Nozzles amplify compressed air by up to 20:1 for economical operation
Simple design optimises ionisation and blow-off power from a concentrated air flow
Low noise, versatile and easy to install
The 4510 is widely used for static neutralisation and dust removal from small mouldings and similar parts. Also for product separation in automatic feeders.

Construction Stainless steel and PTFE.

Cable Hi-Flex 30 kV screened cable with 70 mm bend diameter. Standard length is 2 m - longer lengths can be specified at time of order (subject to maximum load on power unit).

Safety 100 Mohm resistance in series with HV for shockless operation.

Air Supply Air Pressure: maximum 7 Bar.
Air Consumption: 2 Bar: 180 l/min. 7 Bar: 520 l/min.

Air Fitting: push-fit connector for 8mm OD Tubing

Environmental 60 °C maximum temperature. 70 % rH non-condensing max.

Noise: 76 dBA @ 7 Bar.

Certification CE.
