Stencil Printers

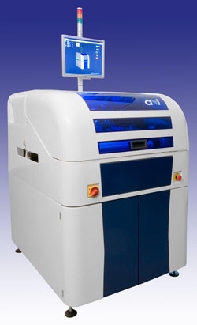

The Europlacer ii-P7 Inline Stencil Printer is a high-performance solder paste printer engineered for precision, speed, and repeatability in modern SMT production environments. Designed for inline integration, it delivers exceptional print accuracy and throughput for a wide range of PCB sizes. With advanced automation, intelligent alignment systems, and modular features like under-screen cleaning and paste dispensing, the ii-P7 supports consistent performance, reduced downtime, and optimized process control in demanding electronics manufacturing lines.

Features:
*Ensures high printing precision and repeatability for consistent solder paste deposition.
*Offers cycle times as low as 5 seconds to support high-volume production.
*Integrates seamlessly into inline SMT manufacturing lines for smooth board transfer.
*Includes a built-in paste dispensing unit for efficient and uniform material application.
*Features an advanced under-screen cleaning system to maintain stencil cleanliness.
*Utilizes linear encoder technology for accurate motion control and stability.
*Supports full traceability and barcode labeling for production tracking and quality assurance.
*Provides user-friendly software for setup, control, and real-time monitoring.

Specifications:
*Manufacturer: Europlacer
*Model / Part Number: ii-P7
*Product Type: Inline Stencil Printer
*Maximum PCB Size: Approximately 610 mm × 515 mm
*Minimum PCB Size: Approximately 45 mm × 45 mm
*PCB Thickness: 0.2 mm to 8 mm
*Maximum Board Weight: Around 1 kg
*Print Speed: 5 to 250 mm/s
*Cycle Time Options: 9 seconds (standard), 7 seconds (Velocity mode), or 5 seconds (Velocity+ mode)
*Repeatability / Accuracy: ±20 µm @ 6s (2Cpk)
*Underside Clearance: Approximately 30 mm
*Software Control: ii-PS control software
*Additional Modules: Paste Dispensing Unit (PDu), Barcode Labeling (S-Track), Enhanced Cleaning System

Applications:
*Designed for stencil solder paste printing in SMT assembly lines.
*Ideal for electronics manufacturing in consumer, industrial, and automotive sectors.
*Suitable for mid- to high-volume production requiring fast changeovers.
*Used in environments demanding precision alignment and process repeatability.
*Integrated in lines requiring full process traceability and quality control.
