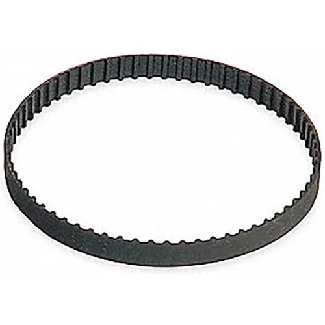

The Fisnar Timing Belt 200R is a high-precision synchronous timing belt designed specifically for use in Fisnar SCARA robotic systems, such as the TMB200 series. This timing belt provides smooth, reliable power transmission for robotic axis movement, ensuring synchronized motion and high repeatability required in automated dispensing applications. Its reinforced construction reduces stretch and slippage, supporting accurate fluid placement.

Key Features:
*Synchronous drive timing belt with 5 mm tooth pitch
*200 mm total belt length with 20 precision-molded teeth
*Reinforced rubber construction for durability and minimal stretch
*Optimized for multi-axis robotic motion with minimal backlash
*Designed for long life under high-cycle automation environments
*Easy to install and replace within Fisnar robotic assemblies

Specifications:
*Manufacturer: Fisnar
*Part Number: 2003343
*Belt Type: Synchronous timing belt
*Profile: 20T5 (20 teeth, 5 mm pitch)
*Total Length: 200 mm
*Material: Reinforced rubber or synthetic compound
*Tooth Count: 20
*Application: Used in SCARA robotic drive systems (e.g., TMB200)
*Function: Ensures accurate, synchronized robotic movement
*Mounting Position: Axis drive mechanism (X, Y, or Z)

Applications:
*Used in Fisnar SCARA robotic arms to synchronize motion across axes.
*Maintains precise dispensing head positioning for dot, bead, and fill patterns.
*Suitable for replacing worn or stretched belts in production lines.
*Commonly applied in electronics assembly, precision fluid dispensing, automotive parts sealing, and automated production systems.
*Ensures consistent motion and reduces positional errors in high-speed operations.
