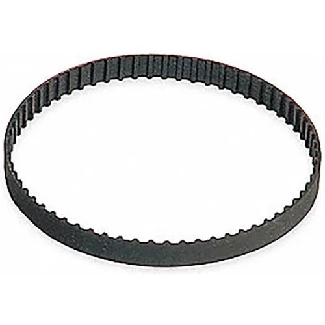

The Fisnar Timing Belt 200R is a high-precision synchronous drive belt designed for use in Fisnar SCARA robotic systems such as the TMB200. This timing belt transmits motion between motor pulleys and mechanical components, maintaining perfect synchronization between robotic joints. Its reinforced construction and toothed profile ensure consistent motion, minimal backlash, and long-term durability in industrial environments.

Key Features:
*High-precision toothed timing belt with 5 mm pitch
*200 mm total belt length for compact motion systems
*20 teeth (T5 profile) for precise mechanical engagement
*Reinforced rubber construction resists stretch and wear
*Compatible with Fisnar SCARA robot models
*OEM-certified for reliable fit and performance
*Reduces backlash and enhances movement accuracy
*Designed for high-cycle use in automation systems

Specifications:
*Manufacturer: Fisnar
*Part Number: 2003353
*Belt Type: Timing belt
*Profile: 20T5 (20 teeth, 5 mm pitch)
*Length: 200 mm
*Tooth Count: 20
*Material: Reinforced rubber or synthetic polymer
*Function: Synchronous belt for robotic axis drive
*Compatible Equipment: Fisnar SCARA robots (e.g., TMB200 series)
*Application Area: X-, Y-, or Z-axis drive mechanism
*Operating Conditions: Industrial-grade, repetitive-motion environments

Applications:
*Used in Fisnar SCARA robotic dispensing systems.
*Maintains synchronized motion between robot axes.
*Supports high-accuracy adhesive and sealant dispensing.
*Suitable for electronics manufacturing, medical device assembly, and precision automation.
*Replaces worn or stretched belts to restore robotic alignment and performance.
*Enables repeatable motion patterns critical to automated dispensing processes.
