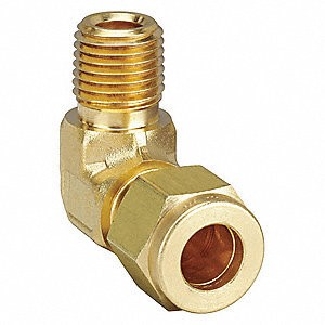

The 4-4CBZ-S is a 90-degree male elbow fitting commonly used in I&J Fisnar fluid dispensing systems. This component is designed to connect 1/4" outer diameter tubing to equipment with a 1/4" NPT (National Pipe Thread) female port, allowing for compact and reliable fluid routing at right angles. The fitting utilizes a single-ferrule compression system, providing a strong, leak-resistant connection ideal for use in pressurized air and fluid lines.

Key Features:
*90-degree male elbow for tight-space fluid routing
*One-piece single-ferrule compression design
*1/4" OD tube end to 1/4" NPT male threaded end
*Robust metal construction for high strength and pressure resistance
*Flareless connection eliminates the need for flaring tools
*Leak-resistant seal ensures safety and reliability
*Ideal for instrumentation, automation, and fluid dispensing systems

Specifications:
*Manufacturer: I&J Fisnar
*Part Number: 4-4CBZ-S
*Fitting Type: Male Elbow
*Configuration: 90-degree angle
*Tube End: 1/4" OD compression fitting
*Threaded End: 1/4" NPT male
*Material: Carbon steel (standard); stainless steel versions may be available
*Seal Type: Single-ferrule compression
*Installation: Flareless, wrench-tightened connection
*Application Pressure: Suitable for medium to high-pressure systems

Applications:
*Connecting fluid or air lines in Fisnar dispensing systems
*Used in equipment such as valves, reservoirs, pumps, and robots
*Ideal for tight-space configurations requiring angled tube routing
*Common in electronics manufacturing, adhesive dispensing, and automated fluid control setups
*Supports clean, organized fluid line layouts in benchtop or inline systems
