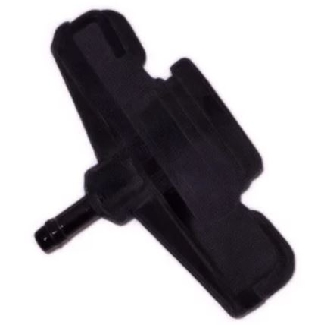

The Fisnar 560004H-HD-1 is a black molded adapter head designed for use with 30cc to 50cc syringe barrels in Fisnar QuantX dispensing systems. This component enables a secure and airtight connection between the syringe barrel and a pneumatic dispensing controller. Featuring an integrated Buna-N O-ring for reliable sealing, the adapter head ensures smooth, leak-free operation. The part is logo-marked for easy identification and is compatible with standard 1/8" OD tubing connections.

Key Features:
*Compatible with Fisnar QuantX 30cc to 50cc syringe barrels
*Black molded adapter head with logo for quick identification
*Integrated Buna-N O-ring provides a secure, leak-proof seal
*Push-to-connect fitting for 1/8" OD tubing
*Male quick-disconnect connector for fast system integration
*Durable, reusable design for long-term use
*Resistant to most chemicals used in fluid dispensing applications

Specifications:
*Manufacturer: Fisnar
*Part Number: 560004H-HD-1
*Compatible Syringe Sizes: 30cc and 50cc
*Color: Black
*Material: Molded industrial-grade plastic
*Seal Type: Buna-N (nitrile rubber) O-ring
*Tubing Connection: 1/8 inch OD push-fit port
*Controller Connection: Male quick-disconnect fitting with safety clip
*Pressure Rating: Up to 100 psi
*Reusability: Yes

Applications:
*Used to connect 30cc and 50cc syringe barrels to pneumatic dispensing systems.
*Ideal for dispensing adhesives, sealants, silicones, epoxies, greases, and other viscous materials.
*Suitable for use in electronics manufacturing, medical device assembly, aerospace production, and general industrial fluid handling.
*Supports clean, fast syringe barrel changeovers in both manual and automated systems.
*Commonly used with benchtop dispensers and robotic dispensing platforms.
