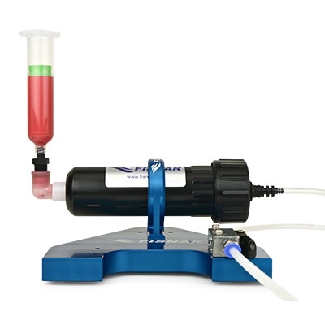

The Fisnar Manual Barrel Loader is a pneumatic-assisted filling system designed for efficiently transferring thick, thixotropic materials - like greases, epoxies, silicones, and solder pastes - from pre-filled 12 oz cartridges into disposable syringe barrels (e.g., 30 cc, 55 cc). Mounted on a stable base, the cartridge is inserted vertically, then pressurized with air to automatically force material into the barrel, eliminating hand-pump loading and air entrapment.

Key Features:
*Engineered to load syringe barrels from standard 12-oz cartridges.
*Pneumatic operation with air regulator, no manual pumping required.
*Includes a spring-loaded switch to start/stop air feed when cartridge is inserted.
*Built-in air relief ensures safe decompression when filling is complete.
*Includes cartridge retainer, stand assembly, barrel adapter, and one cartridge with plunger.
*Provides consistent, clean, and hands-free barrel filling.

Specifications:
*Manufacturer: Fisnar
*Part Number: 560022
*Cartridge Capacity: 12 oz (approx. 350 cc)
*Cartridge Type: Pre-filled disposable cartridge (included)
*Material Transfer: To 30 cc or 55 cc syringe barrels
*Air Supply: Regulated, up to 65 psi (4.5 bar)
*Trigger Type: Manual base-mounted switch
*Air Relief: Automatic when switch released
*Package Contents: Stand, barrel adapter assembly, cartridge retainer, cartridge with plunger
*Construction: Heavy-duty stand plus metal/plastic cartridge components

Applications:
*Filling syringe barrels for dispensing controllers with thick adhesives, sealants, and pastes.
*Used in electronics, aerospace, automotive, and general industrial manufacturing.
*Ideal for lab or production setups requiring consistent material handling.
*Supports dispensing accuracy by providing air-free barrel charging.
