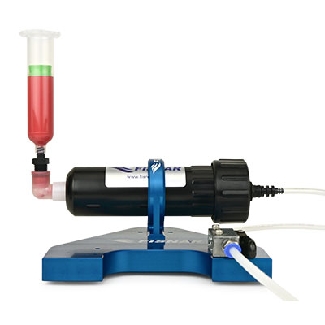

The Fisnar 560022-M is a manual, pneumatic-assisted barrel loader designed for efficiently transferring thick or thixotropic materials such as greases, silicones, epoxies, and solder pastes from standard 12 oz cartridges into disposable syringe barrels. This stand-mounted unit ensures a clean, controlled, and air-free loading process, significantly improving dispensing precision and reducing material waste.

Key Features:
*Designed to load syringe barrels from 12 oz (approx. 355 cc) cartridges
*Pneumatic filling system operated by a spring-loaded manual switch
*Built-in air relief valve ensures safe depressurization after use
*Eliminates manual hand-pumping and air entrapment
*Comes complete with barrel adapter, cartridge retainer, and plunger
*Compatible with 30 cc and 55 cc Luer Lock barrels
*Heavy-duty stand provides stability and long-term durability

Specifications:
*Manufacturer: Fisnar
*Model Number: 560022-M
*Cartridge Capacity: 12 oz (approx. 355 cc)
*Compatible Barrel Sizes: 30 cc and 55 cc (others optional with adapters)
*Material Compatibility: Greases, epoxies, RTVs, silicones, solder pastes, sealants
*Air Pressure Requirement: Regulated up to 65 psi (4.5 bar)
*Operation Type: Manual switch-controlled pneumatic filling
*Included Components:
*Pneumatic loader stand
*Cartridge retainer
*Barrel adapter assembly
*Blank 12 oz cartridge with plunger
Construction: Metal base with industrial-grade components

Applications:
*Filling dispensing syringe barrels in industrial production and laboratory settings.
*Ideal for electronics manufacturing, aerospace, automotive, and medical device assembly.
*Prepares fluid-filled syringes for precise bead, dot, or line dispensing.
*Suitable for cleanroom use and repetitive batch operations.
*Works with high-viscosity materials requiring air-free barrel loading.
