Full Function Handy DMMS for Lab and Field Services.

Auto-ranging 6000 count display with auto power-off
VFD ACV function fo Variable Speed Drive voltage measurements
BeepLit Continuity Test beeps but flashes the backlight too.
Non-contact voltage detection
Audible input protection

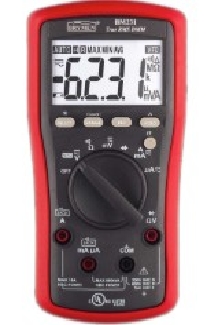

Manufacturer: BRYMEN
Type of meter: digital multimeter
Kind of display used: LCD
Display parameters: (6000)
DC voltage measuring range: 60mV/600mV/6V/60V/600V/1kV
DC voltage measuring accuracy: ±(0.3% + 2 digit)
AC voltage measuring range: 6V/60V/600V/1kV
AC voltage measuring accuracy: ±(0.7% + 3 digit)
DC current measuring range: 600µA/6mA/60mA/600mA/6A/10A
DC current measuring accuracy: ±(1.5% + 3 digit)
AC current measuring range (1) indirect measurement): 600µA/6mA/60mA/600mA/6A/10A
AC current measuring accuracy: ±(1.5% + 3 digit)
True effective value measurement: True RMS
Resistance measuring range: 600O/6kO/60kO/600kO/6MO/60MO
Resistance measuring accuracy: ±(0.5%+3 digit)
Diode test: 0.3mA @3V
Continuity test: acoustic indication, 30O...480O
Weight with battery: 334g
Measurement: AC current, AC voltage, DC current, DC voltage
Conform to the norm:
CAT II 1000V
CAT III 600V
CAT IV 300V
EN 61010
Sampling: 5x/s
Dimensions (W x H x D): 80x161x50mm
Illumination: yes
